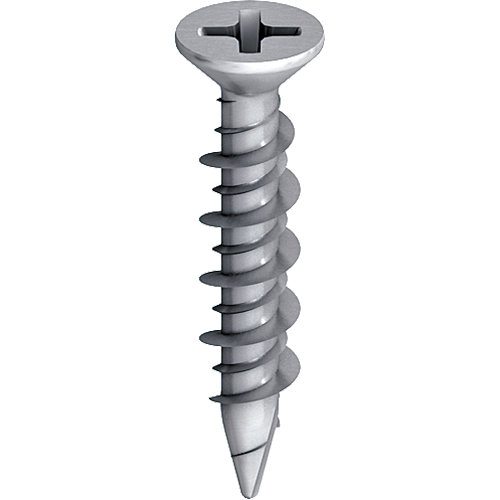

EJOT® window screw type ATS

Fensterbohrschraube Typ ATS
Produktbild2

Specification

  • Applications

    • For increased loads
    • For reliable replacement of stripped fitting screws

  • Properties

    • With DSK point for precise and no run-out fastening in PVC
    • With HT thread - Head diameter identical with fitting screw type S (7,3 mm)
    • Case-hardened steel

  • Technical specifications

    • Head diameter: 7.3 mm
    • Drive: cross recess PH 2
    • Thread type: HT thread
Order note: The EJOSEAL coating offers a higher corrosion resistance

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Material Unit
    ATS self-drilling window screw 4.8x25 2206425607 4.8 25.0 EJOSEAL 1000

    Specifications

    ø
    4.8
    Length
    25.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    ATS self-drilling window screw 4.8x25
    Unit
    1000
    ATS self-drilling window screw 4.8x30 2206430607 4.8 30.0 EJOSEAL 1000

    Specifications

    ø
    4.8
    Length
    30.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    ATS self-drilling window screw 4.8x30
    Unit
    1000
    ATS self-drilling window screw 4.8x38 2206438607 4.8 38.0 EJOSEAL 1000

    Specifications

    ø
    4.8
    Length
    38.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    ATS self-drilling window screw 4.8x38
    Unit
    1000
