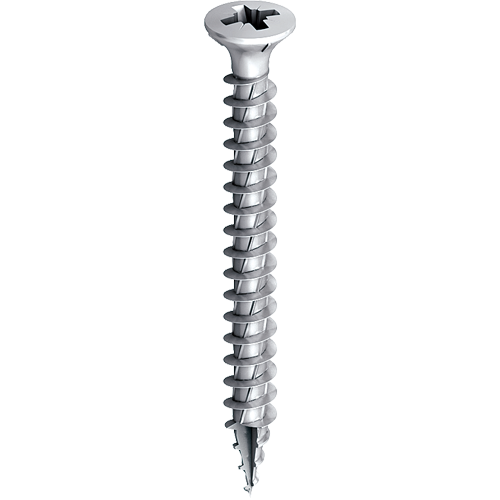

EJOT® self-drilling window screw type Super-JOT

Specification

  • Applications

    • For fixing tilt and turn fittings in wood
    • Fixing locking plates and bearings etc.
  • Properties

    • The special thread geometry and the wax coating ensure low installation torques and high stripping or loosening torques
    • Immediate grip in the wood due to a perfectly formed cutting tip
    • Edge distance and pre-drilling according to Eurocode 5 (former DIN 1052)
    • Case-hardened steel
  • Technical specifications

    • Head diameter: 7.0 mm
    • Thread geometry: special thread, reinforced
    • Point: cutting point
Order note: The EJOSEAL coating offers a higher corrosion resistance

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Material Unit
    Super-Jot self-drilling window screw 4.0x25-Z 2211225608 4.0 25.0 EJOSEAL 1000

    Specifications

    ø
    4.0
    Length
    25.0
    Material
    EJOSEAL
    Drive
    Pozidrive PZ2
    Orderidentifier
    Super-Jot self-drilling window screw 4.0x25-Z
    Unit
    1000
    Window screw Super-Jot 4.0x30-TX20 2211230300 4.0 30.0 EJOSEAL 1000

    Specifications

    ø
    4.0
    Length
    30.0
    Material
    EJOSEAL
    Drive
    Pozidrive PZ2
    Orderidentifier
    Window screw Super-Jot 4.0x30-TX20
    Unit
    1000
    Super-Jot self-drilling window screw 4.0x30-Z 2211230608 4.0 30.0 EJOSEAL 1000

    Specifications

    ø
    4.0
    Length
    30.0
    Material
    EJOSEAL
    Drive
    Pozidrive PZ2
    Orderidentifier
    Super-Jot self-drilling window screw 4.0x30-Z
    Unit
    1000
    Super-Jot self-drilling window screw 4.0x35-Z 2211235608 4.0 35.0 EJOSEAL 1000

    Specifications

    ø
    4.0
    Length
    35.0
    Material
    EJOSEAL
    Drive
    Pozidrive PZ2
    Orderidentifier
    Super-Jot self-drilling window screw 4.0x35-Z
    Unit
    1000
    Super-Jot self-drilling window screw 4.0x40-Z 2211240608 4.0 40.0 EJOSEAL 1000

    Specifications

    ø
    4.0
    Length
    40.0
    Material
    EJOSEAL
    Drive
    Pozidrive PZ2
    Orderidentifier
    Super-Jot self-drilling window screw 4.0x40-Z
    Unit
    1000
    Window screw Super-Jot 4.0x45-TX20 2211245300 4.0 45.0 EJOSEAL 1000

    Specifications

    ø
    4.0
    Length
    45.0
    Material
    EJOSEAL
    Drive
    Pozidrive PZ2
    Orderidentifier
    Window screw Super-Jot 4.0x45-TX20
    Unit
    1000
    Super-Jot self-drilling window screw 4.0x45-Z 2211245608 4.0 45.0 EJOSEAL 1000

    Specifications

    ø
    4.0
    Length
    45.0
    Material
    EJOSEAL
    Drive
    Pozidrive PZ2
    Orderidentifier
    Super-Jot self-drilling window screw 4.0x45-Z
    Unit
    1000
    Super-Jot self-drilling window screw 4.0x50-Z 2211250608 4.0 50.0 EJOSEAL 1000

    Specifications

    ø
    4.0
    Length
    50.0
    Material
    EJOSEAL
    Drive
    Pozidrive PZ2
    Orderidentifier
    Super-Jot self-drilling window screw 4.0x50-Z
    Unit
    1000
