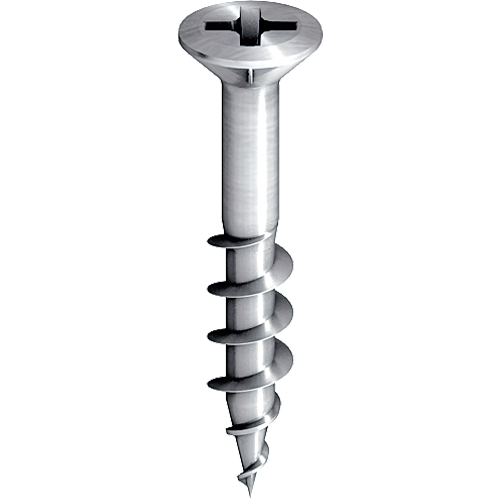

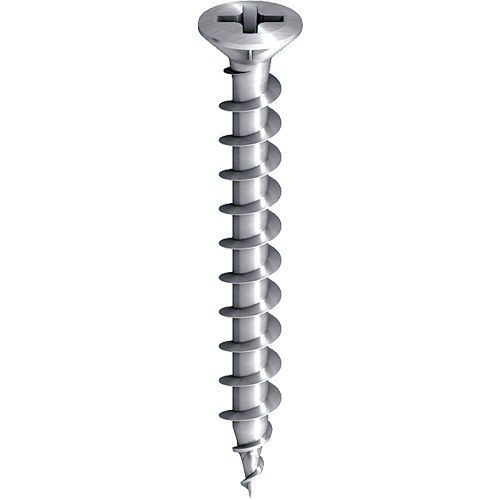

EJOT® self-drilling window screw type Super-E

Specification

  • Applications

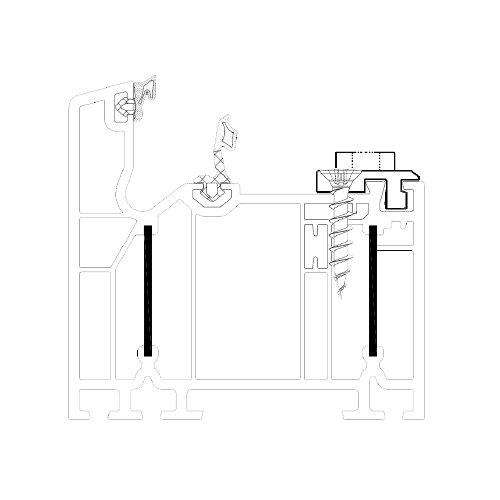

    • Fastening of tilt and turn fittings in PVC profiles and in steel or GRP inserts
    • Fixing locking plates, strips and bearings
  • Properties

    • Cost-effective screw for fittings with onestart thread
    • Under-head serrations for increased safety against stripping
    • Slightly curved head for flawless appearance even with bevelled installation
    • Roll-sorted quality for automated fastening
    • Case-hardened steel
  • Technical specifications

    • Head Diameter: 7.1 mm
    • Drive: cross recess PH 2
    • Thread type: single-start screw thread
Order note: The EJOSEAL coating offers a higher corrosion resistance

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Material Unit
    Self-drilling window screw Super-E 4.2 x 16 2253416607 4.2 16.0 EJOSEAL 1000

    Specifications

    ø
    4.2
    Length
    16.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Self-drilling window screw Super-E 4.2 x 16
    Unit
    1000
    Self-drilling window screw Super-E 4.2 x 20 2253420607 4.2 20.0 EJOSEAL 1000

    Specifications

    ø
    4.2
    Length
    20.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Self-drilling window screw Super-E 4.2 x 20
    Unit
    1000
    Self-drilling window screw Super-E 4.2 x 22 2253422607 4.2 22.0 EJOSEAL 1000

    Specifications

    ø
    4.2
    Length
    22.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Self-drilling window screw Super-E 4.2 x 22
    Unit
    1000
    Self-drilling window screw Super-E 4.2 x 25 2253425607 4.2 25.0 EJOSEAL 1000

    Specifications

    ø
    4.2
    Length
    25.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Self-drilling window screw Super-E 4.2 x 25
    Unit
    1000
    2253428607 4.2 28.0 EJOSEAL 1000

    Specifications

    ø
    4.2
    Length
    28.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Unit
    1000
    Self-drilling window screw Super-E 4.2 x 30 2253430607 4.2 30.0 EJOSEAL 1000

    Specifications

    ø
    4.2
    Length
    30.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Self-drilling window screw Super-E 4.2 x 30
    Unit
    1000
    Self-drilling window screw Super-E 4.2 x 35 2253435607 4.2 35.0 EJOSEAL 1000

    Specifications

    ø
    4.2
    Length
    35.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Self-drilling window screw Super-E 4.2 x 35
    Unit
    1000
    Self-drilling window screw Super-E 4.2 x 40 2253440607 4.2 40.0 EJOSEAL 1000

    Specifications

    ø
    4.2
    Length
    40.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Self-drilling window screw Super-E 4.2 x 40
    Unit
    1000
    Self-drilling window screw Super-E 4.2 x 45 2253445607 4.2 45.0 EJOSEAL 1000

    Specifications

    ø
    4.2
    Length
    45.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Self-drilling window screw Super-E 4.2 x 45
    Unit
    1000
    Self-drilling window screw Super-E 4.2 x 55 2253455607 4.2 55.0 EJOSEAL 1000

    Specifications

    ø
    4.2
    Length
    55.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Self-drilling window screw Super-E 4.2 x 55
    Unit
    1000
