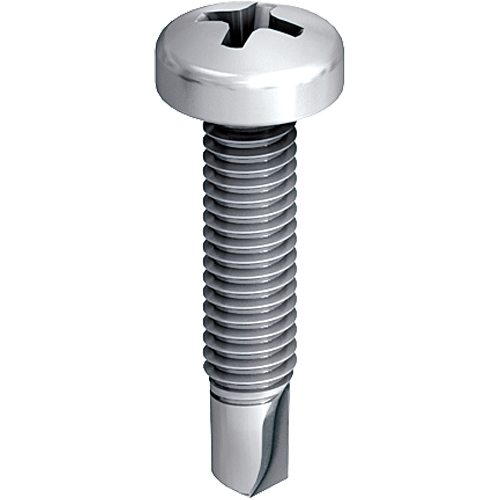

EJOT® self-drilling screw type FDM1

Bohrschraube Typ FDM1
Produktbild2

Specification

  • Applications

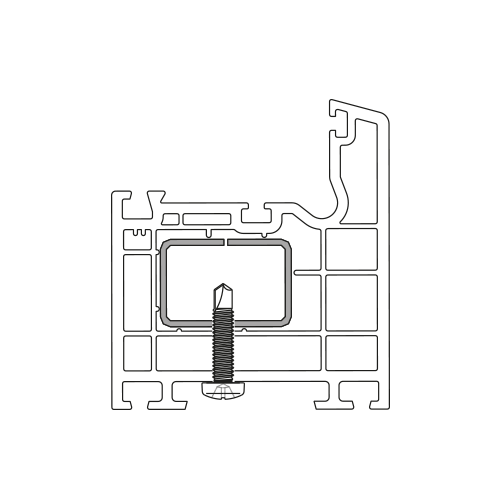

    • Fixing 1.5 - 3.5 mm reinforced steel in reinforced or multi-ply PVC windows

  • Properties

    • The fine thread pitch of the metric thread prevents a forced feed in thick-walled PVC or in window profiles with multiple cavities
    • Roll-sorted quality for automated fastening
    • Case-hardened steel

  • Technical specifications

    • Head diameter: 8.0 mm
    • Drive: cross recess PH 2
    • Thread type: metric
Choose a product variant

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Material Unit
    Self-drilling screw FDM1 M4x16 7285502607 4.0 16.0 EJOSEAL 1000

    Specifications

    ø
    4.0
    Length
    16.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Self-drilling screw FDM1 M4x16
    Unit
    1000
    Self-drilling screw FDM1 M4x19 7285503607 4.0 19.0 EJOSEAL 1000

    Specifications

    ø
    4.0
    Length
    19.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Self-drilling screw FDM1 M4x19
    Unit
    1000
