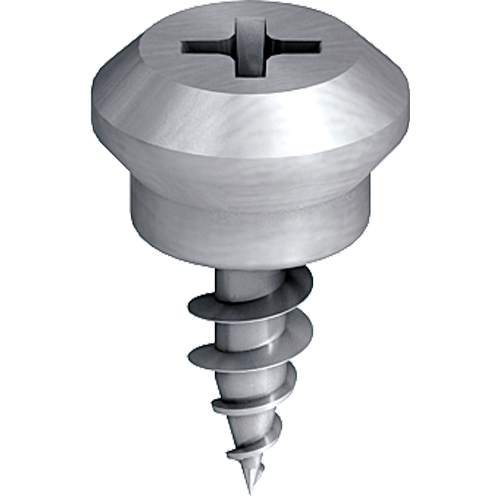

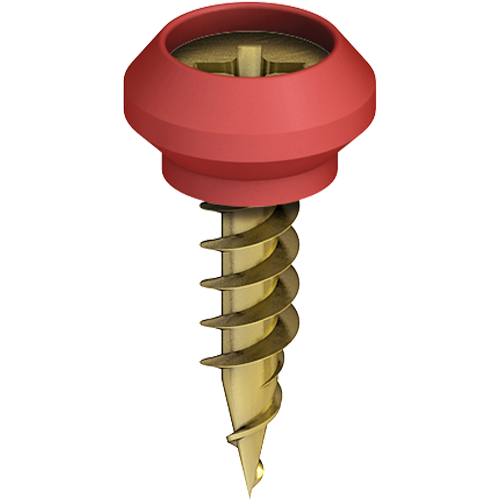

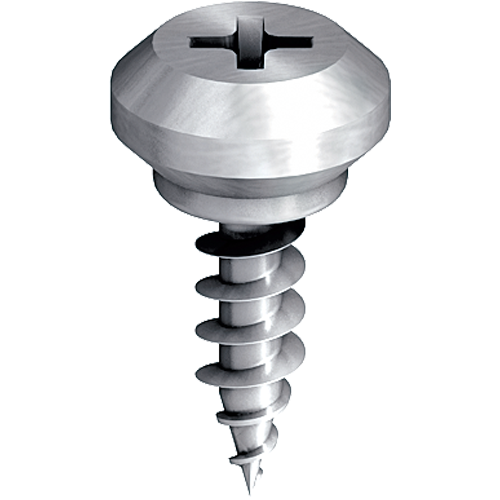

EJOT® Rollo self-drilling screw type RD

Rollo-Bohrschraube Typ RD_foto4
Rollo-Bohrschraube Typ RD_foto1
Rollo-Bohrschraube Typ RD_foto2
Rollo-Bohrschraube Typ RD_foto3
Produktbild2
Produktbild3

Specification

  • Applications

    Clamping of:

    • roller-shutter profiles
    • drip sills

  • Technical specifications

    • Drive: cross recess PH 2
    • Thread type: double-start thread
Choose a product variant

Filter

Selected filters

    Orderidentifier Article Number Head length mm ø mm Length mm Material Unit
    Rollo self-drilling screw type RD-1 4x9 yellow 2289121602 9.5 6.8 9.0 Zinc plated, blue passivated 1000

    Specifications

    Head length
    9.5
    ø
    6.8
    Length
    9.0
    Material
    Zinc plated, blue passivated
    Drive
    Phillips PH 2
    Orderidentifier
    Rollo self-drilling screw type RD-1 4x9 yellow
    Unit
    1000
    Rollo self-drilling screw type RD-2 4x13 red 2289122602 10.5 7.4 13.0 Zinc plated, blue passivated 1000

    Specifications

    Head length
    10.5
    ø
    7.4
    Length
    13.0
    Material
    Zinc plated, blue passivated
    Drive
    Phillips PH 2
    Orderidentifier
    Rollo self-drilling screw type RD-2 4x13 red
    Unit
    1000
    Rollo self-drilling screw type RD-3 4x12 white 2289123602 12.0 8.4 12.0 Zinc plated, blue passivated 1000

    Specifications

    Head length
    12.0
    ø
    8.4
    Length
    12.0
    Material
    Zinc plated, blue passivated
    Drive
    Phillips PH 2
    Orderidentifier
    Rollo self-drilling screw type RD-3 4x12 white
    Unit
    1000
    Rollo self-drilling screw type RD-4 4x10 blue 2289124602 11.0 8.6 10.0 Zinc plated, blue passivated 1000

    Specifications

    Head length
    11.0
    ø
    8.6
    Length
    10.0
    Material
    Zinc plated, blue passivated
    Drive
    Phillips PH 2
    Orderidentifier
    Rollo self-drilling screw type RD-4 4x10 blue
    Unit
    1000
    Rollo self-drilling screw type RD-5 4x12 green 2289125602 11.0 8.4 12.0 Zinc plated, blue passivated 1000

    Specifications

    Head length
    11.0
    ø
    8.4
    Length
    12.0
    Material
    Zinc plated, blue passivated
    Drive
    Phillips PH 2
    Orderidentifier
    Rollo self-drilling screw type RD-5 4x12 green
    Unit
    1000
    Rollo self-drilling screw type RD-6 4x12 yellow 2289126602 9.5 6.8 12.0 Zinc plated, blue passivated 1000

    Specifications

    Head length
    9.5
    ø
    6.8
    Length
    12.0
    Material
    Zinc plated, blue passivated
    Drive
    Phillips PH 2
    Orderidentifier
    Rollo self-drilling screw type RD-6 4x12 yellow
    Unit
    1000
