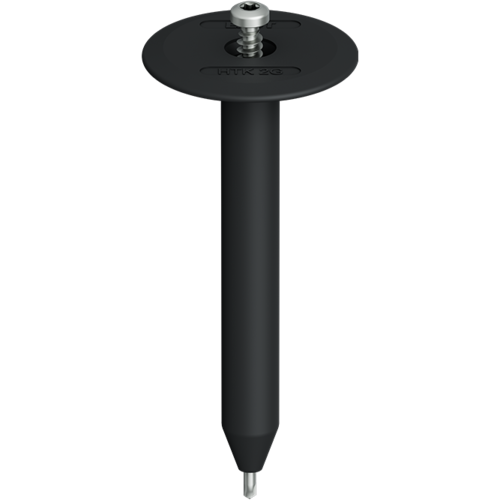

EJOT® stress plate HTK-2G/ZTR loose, pre-assembled
Specification
-
Applications
- Adjustable fastening element
- For securing roofing membranes and insulation materials on substructures made of sheet steel ≥ 0.70 mm ≤ 1.5 mm
- For new buildings
- Ideal for use with sloped insulation up to 590 mm
- To reduce thermal bridges
-
Properties
- DABO® screw: case-hardened steel, Climadur coated - high-quality coating to improve corrosion protection (15 rounds Kesternich, DIN 50018)
- Stress plate: high-grade plastic material
- Sure-footed due to supporting effect
-
Technical specifications
- Drive: TX25
- Screw diameter: 6.0
- Diameter left-hand thread: 4.9
- Drilling capacity tI + tII: 1.5 mm
- Stress plate diameter: 50mm
- Sure-footed due to supporting effect (metal-plastic)
Filter
Selected filters
| Orderidentifier | Article Number | Insulation thickness mm | Recess Depth mm | Screw length mm | Unit |
|---|---|---|---|---|---|
| HTK-2G-ZTR-110-185-95/120 loose, pre-assembled | 3709512028 | 110.0 - 185.0 | 95.0 | 120.0 | 100 |
Specifications
|
|||||
| HTK-2G-ZTR-160-285-145/170 loose, pre-assembled | 3714517028 | 160.0 - 185.0 | 145.0 | 170.0 | 100 |
Specifications
|
|||||
| HTK-2G-ZTR-240-365-225/170 loose, pre-assembled | 3722517028 | 240.0 - 365.0 | 225.0 | 170.0 | 100 |
Specifications
|
|||||
| HTK-2G-ZTR-340-465-325/170-lose, gesteckt | 3732517028 | 465.0 - 340.0 | 325.0 | 170.0 | 100 |
Specifications
|
|||||
| HTK-2G-ZTR-340-590-325/300-lose gesteckt | 3732530028 | 340.0 - 590.0 | 325.0 | 300.0 | 100 |
Specifications
|
