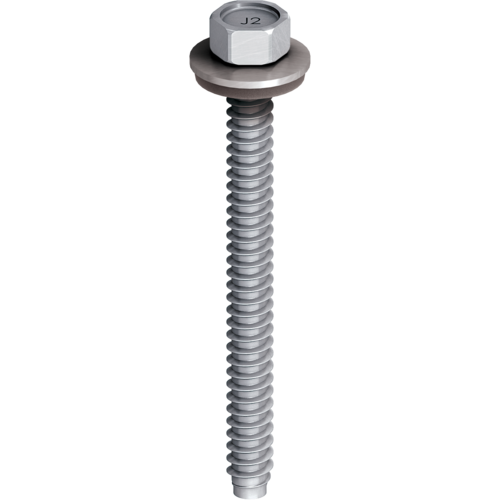

EJOT® self-tapping screw JZ2-6.3

Specification

  • Applications

    • For fixing profiled steel sheet to steel substructure
  • Properties

    • Case-hardened steel, zinc-plated
    • Steel sealing washer, zinc-plated
    • Pre-assembled sealing washer
  • Technical specifications

    Diameter: 6.3 mm
    Drive: Hexagon AF 3/8"
    Installation rotation speed: max. 400 rpm

Filter

Selected filters

    Orderidentifier Article Number Thread Diameter mm Ø Sealing Washer mm Clamp thickness mm Length mm Unit
    JZ2-6.3x19-V16 3181121654 63.0 0.0 - 12.0 19.0 500

    Specifications

    Thread Diameter
    63.0
    Ø Sealing Washer mm
    Clamp thickness
    0.0 - 12.0
    Length
    19.0
    Orderidentifier
    JZ2-6.3x19-V16
    Unit
    500
    JZ2-6.3x25-V16 3181221654 63.0 16 0.0 25.0 500

    Specifications

    Thread Diameter
    63.0
    Ø Sealing Washer mm
    16
    Clamp thickness
    0.0
    Length
    25.0
    Orderidentifier
    JZ2-6.3x25-V16
    Unit
    500
    JZ2-6.3x32-V16 3181321654 63.0 16 0.0 32.0 500

    Specifications

    Thread Diameter
    63.0
    Ø Sealing Washer mm
    16
    Clamp thickness
    0.0
    Length
    32.0
    Orderidentifier
    JZ2-6.3x32-V16
    Unit
    500
    JZ2-6.3x38-V16 3181421654 63.0 16 0.0 38.0 500

    Specifications

    Thread Diameter
    63.0
    Ø Sealing Washer mm
    16
    Clamp thickness
    0.0
    Length
    38.0
    Orderidentifier
    JZ2-6.3x38-V16
    Unit
    500
    JZ2-6.3x50-V16 3181621654 63.0 16 0.0 - 43.0 50.0 250

    Specifications

    Thread Diameter
    63.0
    Ø Sealing Washer mm
    16
    Clamp thickness
    0.0 - 43.0
    Length
    50.0
    Orderidentifier
    JZ2-6.3x50-V16
    Unit
    250
    JZ2-6.3x64-V16 3181821654 63.0 16 0.0 - 57.0 64.0 250

    Specifications

    Thread Diameter
    63.0
    Ø Sealing Washer mm
    16
    Clamp thickness
    0.0 - 57.0
    Length
    64.0
    Orderidentifier
    JZ2-6.3x64-V16
    Unit
    250
    JZ2-6.3x80-V16 3182021654 63.0 16 13.0 80.0 250

    Specifications

    Thread Diameter
    63.0
    Ø Sealing Washer mm
    16
    Clamp thickness
    13.0
    Length
    80.0
    Orderidentifier
    JZ2-6.3x80-V16
    Unit
    250
    JZ2-6.3x90-V16 3182121654 63.0 16 23.0 - 83.0 90.0 100

    Specifications

    Thread Diameter
    63.0
    Ø Sealing Washer mm
    16
    Clamp thickness
    23.0 - 83.0
    Length
    90.0
    Orderidentifier
    JZ2-6.3x90-V16
    Unit
    100
    JZ2-6.3x100-V16 3182221654 63.0 16 33.0 - 93.0 100.0 100

    Specifications

    Thread Diameter
    63.0
    Ø Sealing Washer mm
    16
    Clamp thickness
    33.0 - 93.0
    Length
    100.0
    Orderidentifier
    JZ2-6.3x100-V16
    Unit
    100
    JZ2-6.3x125-V16 3112421651 63.0 16 58.0 - 118.0 125.0 100

    Specifications

    Thread Diameter
    63.0
    Ø Sealing Washer mm
    16
    Clamp thickness
    58.0 - 118.0
    Length
    125.0
    Orderidentifier
    JZ2-6.3x125-V16
    Unit
    100
