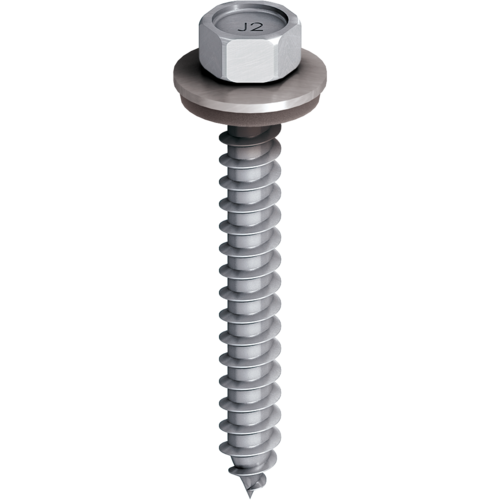

EJOTĀ® self-tapping screw JA2-6.5

Specification

  • Applications

    • For fastening profiled steel sheet to timber substructure
    • Fastening profiled steel sheet ≤ 2 mm steel substructure
    • Side lap stitching
  • Properties

    • Case-hardened steel, zinc-plated
    • Steel sealing washer, zinc-plated
    • Pre-assembled sealing washer
  • Technical specifications

    Diameter: 6.5 mm
    Drive: Hexagon AF3/8"
    Installation rotation speed: max. 1500 rpm

Filter

Selected filters

    Orderidentifier Article Number Length mm Clamp thickness mm Unit
    JA2-6.5x19-V16 3183121654 19.0 500

    Specifications

    Length
    19.0
    Clamp thickness
    Orderidentifier
    JA2-6.5x19-V16
    Unit
    500
    JA2-6.5x25-V16 3183221654 25.0 500

    Specifications

    Length
    25.0
    Clamp thickness
    Orderidentifier
    JA2-6.5x25-V16
    Unit
    500
    JA2-6.5x32-V16 3183321654 32.0 500

    Specifications

    Length
    32.0
    Clamp thickness
    Orderidentifier
    JA2-6.5x32-V16
    Unit
    500
    JA2-6.5x38-V16 3183421654 38.0 500

    Specifications

    Length
    38.0
    Clamp thickness
    Orderidentifier
    JA2-6.5x38-V16
    Unit
    500
    JA2-6.5x50-V16 3183621654 50.0 250

    Specifications

    Length
    50.0
    Clamp thickness
    Orderidentifier
    JA2-6.5x50-V16
    Unit
    250
    JA2-6.5x64-V16 3183821654 64.0 0.0 - 57.0 250

    Specifications

    Length
    64.0
    Clamp thickness
    0.0 - 57.0
    Orderidentifier
    JA2-6.5x64-V16
    Unit
    250
    JA2-6.5x75-V16 3183921654 75.0 0.0 250

    Specifications

    Length
    75.0
    Clamp thickness
    0.0
    Orderidentifier
    JA2-6.5x75-V16
    Unit
    250
    JA2-6.5x90-V16 3184121654 90.0 12.0 100

    Specifications

    Length
    90.0
    Clamp thickness
    12.0
    Orderidentifier
    JA2-6.5x90-V16
    Unit
    100
    JA2-6.5x100-V16 3184221654 100.0 22.0 100

    Specifications

    Length
    100.0
    Clamp thickness
    22.0
    Orderidentifier
    JA2-6.5x100-V16
    Unit
    100
    JA2-6.5x125-V16 3114421651 125.0 47.0 - 75.0 100

    Specifications

    Length
    125.0
    Clamp thickness
    47.0 - 75.0
    Orderidentifier
    JA2-6.5x125-V16
    Unit
    100
