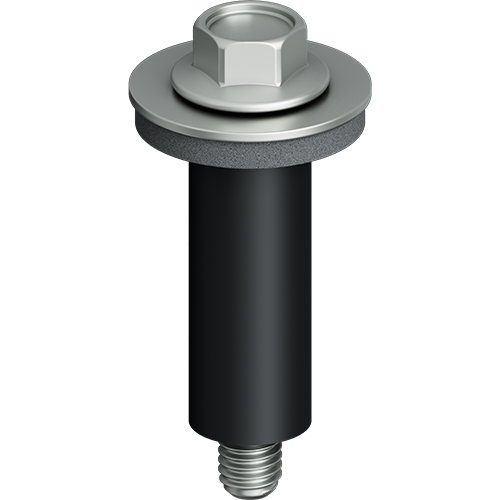

EJOT® clamping screw RLS 25

Specification

  • Applications

    • For side lap stitching of profiled plastic sheets
    • Fastening of profiled plastic sheets with other components, that don't require a load-carrying capacity verification, where variable shear forces due to temperature expansion can be expected.

    Note

    Seal testing is recommended.

  • Properties

    • A2 stainless steel screw
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • EPDM sealing sleeve with brass thread insert
  • Technical specifications

    • Diameter: 8.0 mm
    • Drill hole diameter: 10.0 mm
    • Self-tapping screw: M5
    • Tightening torque: 1.5 Nm
    • Drive: Hexagon A/F8
Orderidentifier Article Number Thread Diameter mm Length mm Fastener material Unit
RLS-25-8,0x25-S19 3110000139 8.0 25.0 Stainless Steel 250

Specifications

Thread Diameter
8.0
Length
25.0
Fastener material
Stainless Steel
Pilot Hole Ø
10.0
Orderidentifier
RLS-25-8,0x25-S19
Unit
250
