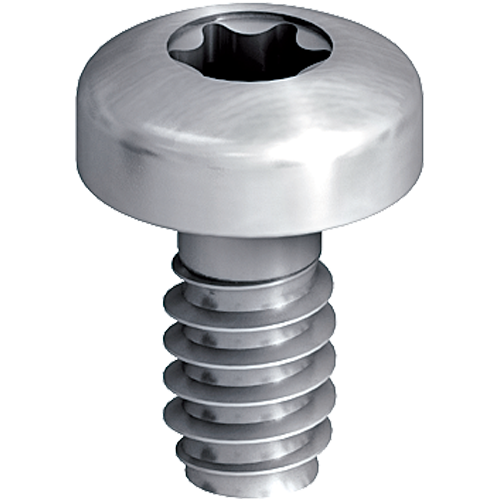

Duro PT

DuroPT

Specification

  • Applications

    • Concealed fixing of agraffes to HPL facade panels (HPL = High Pressure Laminate)
    • Concealed fixing of anchor rails to substructures
    • Agraffe thickness = 5 mm

  • Properties

    • Flat fillister head
    • A4 stainless steel

  • Technical specifications

    Drive: hexalobular / TORX® T30

    NOTE: Hole diameter and installation depth depend on the appearance of the facade panel..Consultation with the EJOT service team required.

Filter

Selected filters

    Orderidentifier Article Number ø mm Fastener material Unit
    Duro-PT S 60x9,5 4510116330 6.0 Stainless Steel 1000

    Specifications

    ø
    6.0
    Fastener material
    Stainless Steel
    Orderidentifier
    Duro-PT S 60x9,5
    Unit
    1000
    Duro-PT S 60x11,5 4510117330 6.0 Stainless Steel 1000

    Specifications

    ø
    6.0
    Fastener material
    Stainless Steel
    Orderidentifier
    Duro-PT S 60x11,5
    Unit
    1000
    Duro PT S60 x 14.5 4510118330 6.0 Stainless Steel 500

    Specifications

    ø
    6.0
    Fastener material
    Stainless Steel
    Orderidentifier
    Duro PT S60 x 14.5
    Unit
    500
