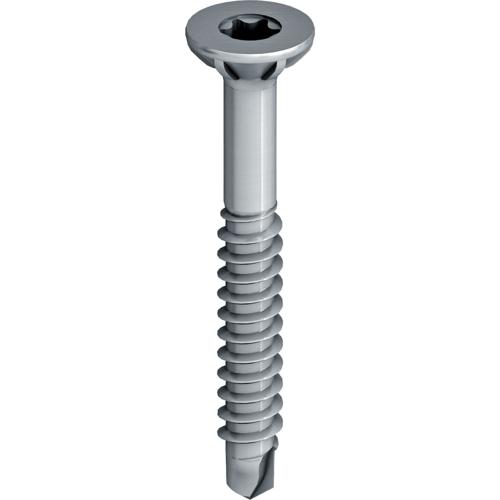

EJOT® JT9-S-2-4,8

JT9-S-2-4,8

Specification

  • Applications

    • Fastening timber laths to aluminium substructures ≤ 2 mm

  • Properties

    • A4 stainless steel
    • Countersunk head with milling ribs

  • Technical specifications

    • Diameter: 4.8 mm
    • Drilling capacity tI + tII: 2.0 mm
    • Drive: TX25
    • Installation rotation speed: max. 1800 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Clamp thickness mm Unit
    JT9-S-2-4,8x38 7382219340 48.0 38.0 20.0 - 30.0 500

    Specifications

    ø
    48.0
    Length
    38.0
    Clamp thickness
    20.0 - 30.0
    Orderidentifier
    JT9-S-2-4,8x38
    Unit
    500
    JT9-S-2-4,8x48 7382220340 4.8 48.0 23.0 - 40.0 500

    Specifications

    ø
    4.8
    Length
    48.0
    Clamp thickness
    23.0 - 40.0
    Orderidentifier
    JT9-S-2-4,8x48
    Unit
    500
    JT9-S-2-4,8x55 7382221340 48.0 55.0 30.0 - 47.0 500

    Specifications

    ø
    48.0
    Length
    55.0
    Clamp thickness
    30.0 - 47.0
    Orderidentifier
    JT9-S-2-4,8x55
    Unit
    500
