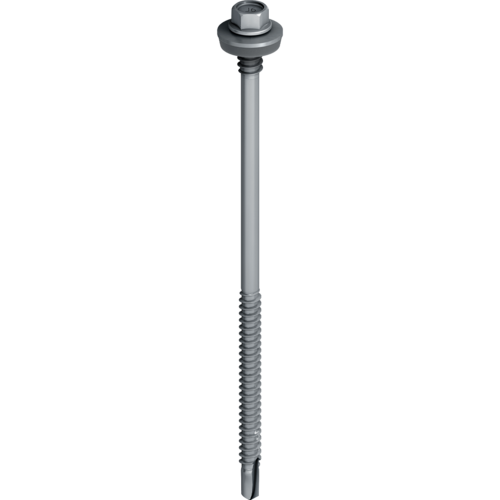

EJOT® self drilling screw JT6-D-6H-5,5/6,3

JT6-D-6H-5,5-6,3

Specification

  • Applications

    • Fastening sandwich panels to 1.5 - 5 mm steel substructure
    • For high-strength steel substructures

  • Properties

    • A4 stainless steel with hardened steel drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • With free spin zone under the screw head
    • High thread

  • Technical specifications

    • Diameter: 5.5 mm
    • Drill capacity tI + tII: 6.5 mm
    • A/F8 hexagon drive
    • Ø high thread: 6.3 mm
    • Installation rotation speed: n = 1.300 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm High thread diameter mm Fastener material Unit
    JT6-D-6H-5,5/6,3x107 7380722331 5.5 6.3 Stainless Steel 250

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-6H-5,5/6,3x107
    Unit
    250
    JT6-D-6H-5.5/6.3x107 E16 3556181971 5.5 6.3 Stainless Steel 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-6H-5.5/6.3x107 E16
    Unit
    100
    JT6-D-6H-5,5/6,3x107 E19 3556182971 5.5 6.3 Stainless Steel 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-6H-5,5/6,3x107 E19
    Unit
    100
    JT6-D-6H-5,5/6,3x127 7380703331 5.5 6.3 Stainless Steel 250

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-6H-5,5/6,3x127
    Unit
    250
    JT6-D-6H-5.5/6.3x127-E16 3556281971 5.5 6.3 Stainless Steel 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-6H-5.5/6.3x127-E16
    Unit
    100
    JT6-D-6H-5,5/6,3x127 E19 3556282971 5.5 6.3 Stainless Steel 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-6H-5,5/6,3x127 E19
    Unit
    100
    JT6-D-6H-5,5/6,3x147 7380704331 5.5 6.3 Stainless Steel 250

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-6H-5,5/6,3x147
    Unit
    250
    JT6-D-6H-5,5/6,3x147 E19 3556382971 5.5 6.3 Stainless Steel 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-6H-5,5/6,3x147 E19
    Unit
    100
    JT6-D-6H-5,5/6,3x167 7380705331 5.5 6.3 Stainless Steel 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-6H-5,5/6,3x167
    Unit
    100
    JT6-D-6H-5,5/6,3x167 E19 3556782971 5.5 6.3 Stainless Steel 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-6H-5,5/6,3x167 E19
    Unit
    100
