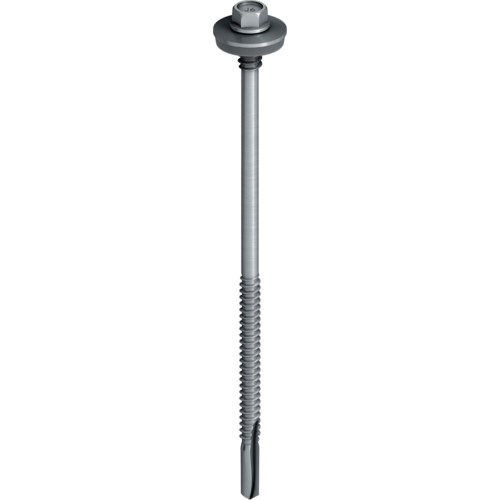

EJOT® self drilling screw JT6-D-12H-5,5/6,3

JT6-D-12H-5,5-6,3
JT6-D-12H-5,5_6,3x135_Pos2_1200x1200px

Specification

  • Applications

    • Fastening sandwich panels to 3 - 12 mm steel substructure

  • Properties

    • A4 stainless steel with hardened steel drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • With free spin zone under the screw head
    • High thread

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 13 mm
    • Drive: Hexagon A/F8
    • Ø high thread: 6.3 mm
    • Installation rotation speed: max. 1300 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm High thread diameter mm Fastener material Unit
    JT6-D-12H-5.5/6.3x115 7380723339 5.5 6.3 Stainless Steel 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-12H-5.5/6.3x115
    Unit
    100
    JT6-D-12H-5.5/6.3x155 E16 3555781911 5.5 6.3 Stainless Steel 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-12H-5.5/6.3x155 E16
    Unit
    100
    JT6-D-12H-5.5/6.3x155 E16 3556581912 5.5 6.3 Stainless Steel 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-12H-5.5/6.3x155 E16
    Unit
    100
    JT6-D-12H-5,5/6,3x75 E16 3555081911 5.5 6.3 Stainless Steel

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-12H-5,5/6,3x75 E16
    Unit
    JT6-D-12H-5,5/6,3x75 E19 3555082911 5.5 6.3 Stainless Steel

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-12H-5,5/6,3x75 E19
    Unit
    JT6-D-12H-5,5/6,3x75 E22 3555083911 5.5 6.3 Stainless Steel

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-12H-5,5/6,3x75 E22
    Unit
    JT6-D-12H-5,5/6,3x95 E16 3555181911 5.5 6.3 Stainless Steel

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-12H-5,5/6,3x95 E16
    Unit
    JT6-D-12H-5,5/6,3x95 E19 3555182911 5.5 6.3 Stainless Steel

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-12H-5,5/6,3x95 E19
    Unit
    JT6-D-12H-5,5/6,3x95 E22 3555183911 5.5 6.3 Stainless Steel

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-12H-5,5/6,3x95 E22
    Unit
    JT6-D-12H-5,5/6,3x115 E16 3555281911 5.5 6.3 Stainless Steel

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-12H-5,5/6,3x115 E16
    Unit
