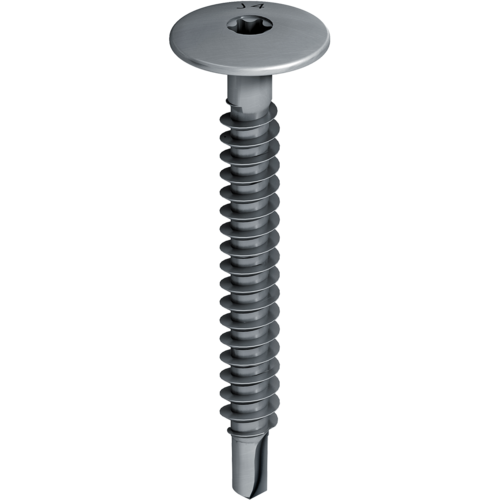

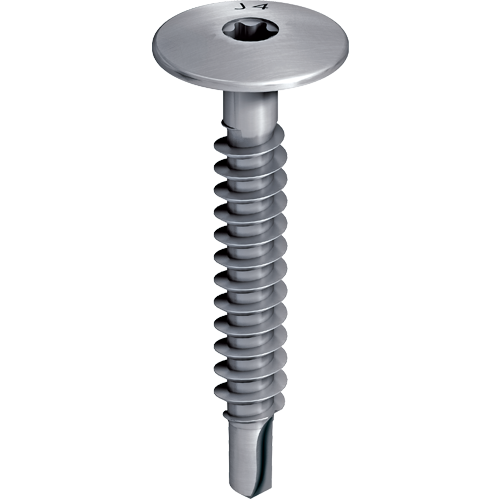

EJOT® self-drilling screw JT4-LT-2/6-6.0x50 KD16

Specification

  • Applications

    • Fastening facade panels to timber and aluminium substructures
    • Can be combined with LT fixed and floating point sleeves

    Note

    Please note the respective approval of the facade panel and the assembly instructions of the manufacturer.

  • Properties

    • A2 stainless steel
    • Pan head

    Benefits

    • To cover slotted holes and large pre-drill diameters
    • Also available in RAL lacquering
    • Flat screw head for aesthetic facade design
    • No pre-drilling of the timber substructure
    • Good drilling behaviour even in areas of branches
  • Technical specifications

    • Diameter: 6.0 mm
    • Drilling capacity (tI pre-drilled) + tII: 1.5–2.0 mm
    • Drive: Hexalobular T25
    • Head diameter: 16 mm
    • Head height: 2.0 mm
    • Length non-threaded part: 6.0 mm
