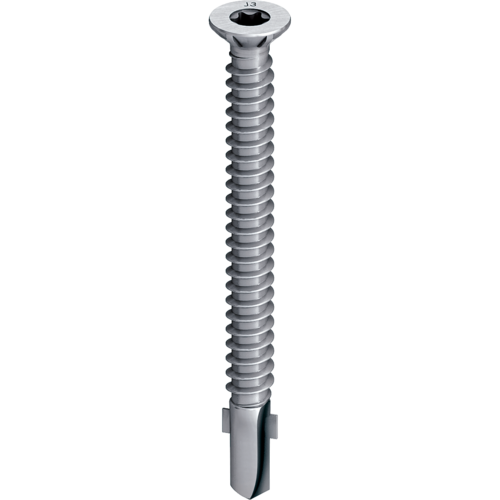

EJOT® self-drilling screw JT3-WD-6-5.5

JT3-WD-6-5,5_Pos2

Specification

  • Applications

    • Special screw for fastening wood to steel substructures

  • Properties

    • A2 stainless steel with hardened steel drill point
    • The wings ream out the wood larger than the thread diameter
    • The wings prevent force feeding of the screw and thus possible damage to the drill point or locking of the assembly parts

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tII: 5.0 mm
    • Drive: Hexalobular drive TX25
    • Installation rotation speed: max. 1300 rpm



    Notice
    To ensure shearing of the wings, the material thickness of the steel substructure must be at least 2.0 mm.

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Clamp thickness mm Fastener material Unit
    JT3-WD-6-5,5x45-R 7382195301 5.5 45.0 0.0 - 26.0 Stainless Steel 500

    Specifications

    ø
    5.5
    Length
    45.0
    Clamp thickness
    0.0 - 26.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-WD-6-5,5x45-R
    Unit
    500
    JT3-WD-6-5,5x65-R 7382194301 5.5 65.0 0.0 - 46.0 Stainless Steel 500

    Specifications

    ø
    5.5
    Length
    65.0
    Clamp thickness
    0.0 - 46.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-WD-6-5,5x65-R
    Unit
    500
