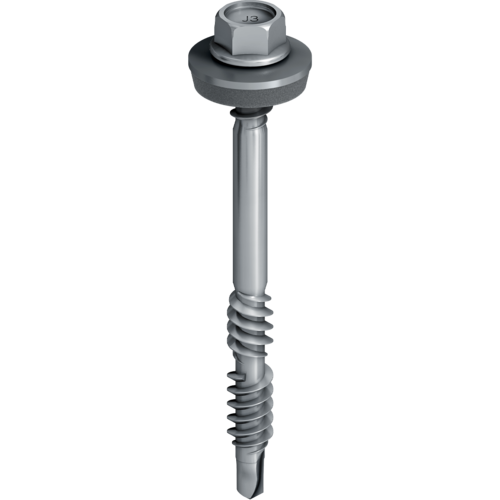

EJOT® self-drilling screw JT3-2H-(40/80)-6.0/6.0

JT3-2H-40-6,0_6,0

Specification

  • Applications

    • Spacer bolt for fastening profiled steel and aluminium sheets to cassette bars with insulation
    • Fastening lesenes to insulated cassette bars
    • Also suitable for fastening shear-deformable wall claddings
    • For 40 and 80 mm insulations

  • Properties

    • A2 stainless steel with hardened steel drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • Special thread geometry allows a removal of the screw
    • No pre-drilling of the outer leaf required

  • Technical specifications

    • Diameter: 6.0 mm
    • Drilling capacity tI + tII: 1.25 + 2 x 1.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1300 rpm

Filter

Selected filters

    Orderidentifier Article Number Length mm Unit
    JT3-2H-80-6,0/6,0x104 E16 3594211351 104.0 100

    Specifications

    Length
    104.0
    Orderidentifier
    JT3-2H-80-6,0/6,0x104 E16
    Unit
    100
    JT3-2H-80-6,0/6,0x104 7380719301

    Specifications

    Length
    Orderidentifier
    JT3-2H-80-6,0/6,0x104
    Unit
    JT3-2H-60-6,0/6,0x84 7380728301

    Specifications

    Length
    Orderidentifier
    JT3-2H-60-6,0/6,0x84
    Unit
