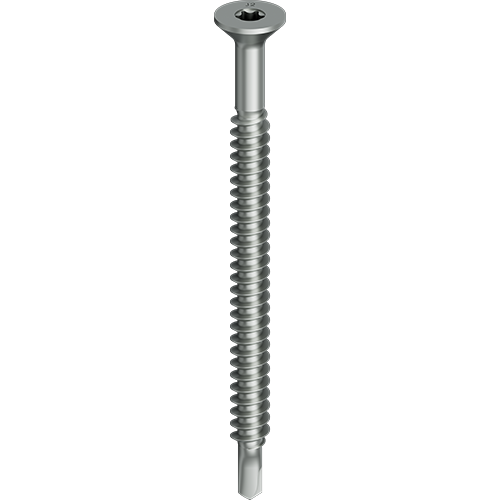

EJOT® self-drilling screw JT2-ST-2-6.0

Specification

  • Applications

    • Fastening timber components to thin-walled steel substructures
  • Properties

    • Case-hardened steel
    • High-grade coating to improve the corrosion protection (15 Kesternich cycles, DIN 50018, 1997)
    • With countersunk head
  • Technical specifications

    • Diameter: 6.0 mm
    • Drilling capacity tI + tII: 1.0 + 1.0 mm
    • Drive: Hexalobular drive TX25
    • Installation rotation speed: max. 1500 rpm
Order note: Thread length was 65 mm. Exception: JT2-ST-2-6.0x40 (full length thread)

Filter

Selected filters

    Orderidentifier Article Number Thread Diameter mm Length mm Clamp thickness mm Unit
    JT2-ST-2-6.0x40 7282110609 6.0 40.0 0.0 - 27.0 500

    Specifications

    Thread Diameter
    6.0
    Length
    40.0
    Clamp thickness
    0.0 - 27.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-ST-2-6.0x40
    Unit
    500
    JT2-ST-2-6,0x60 7282119609 6.0 60.0 15.0 - 47.0 500

    Specifications

    Thread Diameter
    6.0
    Length
    60.0
    Clamp thickness
    15.0 - 47.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-ST-2-6,0x60
    Unit
    500
    JT2-ST-2-6.0x80 7282112609 6.0 80.0 15.0 - 67.0 250

    Specifications

    Thread Diameter
    6.0
    Length
    80.0
    Clamp thickness
    15.0 - 67.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-ST-2-6.0x80
    Unit
    250
    JT2-ST-2-6.0x100 7282113609 6.0 100.0 35.0 - 87.0 250

    Specifications

    Thread Diameter
    6.0
    Length
    100.0
    Clamp thickness
    35.0 - 87.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-ST-2-6.0x100
    Unit
    250
    JT2-ST-2-6.0x120 7282114609 6.0 120.0 55.0 - 107.0 250

    Specifications

    Thread Diameter
    6.0
    Length
    120.0
    Clamp thickness
    55.0 - 107.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-ST-2-6.0x120
    Unit
    250
    JT2-ST-2-6.0x140 7282115609 6.0 140.0 75.0 - 127.0 250

    Specifications

    Thread Diameter
    6.0
    Length
    140.0
    Clamp thickness
    75.0 - 127.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-ST-2-6.0x140
    Unit
    250
    JT2-ST-2-6.0x160 7282116609 6.0 160.0 95.0 - 147.0 100

    Specifications

    Thread Diameter
    6.0
    Length
    160.0
    Clamp thickness
    95.0 - 147.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-ST-2-6.0x160
    Unit
    100
    JT2-ST-2-6.0x180 7282117609 6.0 180.0 115.0 - 167.0 100

    Specifications

    Thread Diameter
    6.0
    Length
    180.0
    Clamp thickness
    115.0 - 167.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-ST-2-6.0x180
    Unit
    100
    JT2-ST-2-6.0x200 7282118609 6.0 200.0 135.0 - 187.0 100

    Specifications

    Thread Diameter
    6.0
    Length
    200.0
    Clamp thickness
    135.0 - 187.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-ST-2-6.0x200
    Unit
    100
