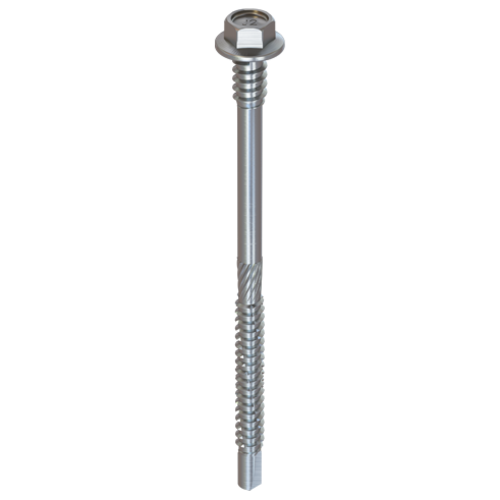

JT2-D-6-5,5/6,3 F12 EJOGUARD


Specification

  • Applications

    • Steel Profiled insulated sandwich panels to medium steel sections.
    • Steel Profiled insulated sandwich panels to Timber with 45-50mm embedment.

  • Properties

    • Carbon Steel with Organic resistant finish.
    • Available unwashered.

  • Technical specifications

    • Drive:8mm magnetic hex one piece socket
    • Steel sections 1.2 to 6.0mm in thickness

Filter

Selected filters

    Orderidentifier Article Number ø mm High thread diameter mm Ø Sealing Washer mm Length mm Unit
    JT2-D-6-5,5/6,3x62 F12 EJOGUARD 3563400674 5.5 6.3 0 - none 62.0 250

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    0 - none
    Length
    62.0
    Clamp thickness
    36.0 - 48.0
    Orderidentifier
    JT2-D-6-5,5/6,3x62 F12 EJOGUARD
    Unit
    250
    JT2-D-6-5,5/6,3x82 F12 EJOGUARD 3563600674 5.5 6.3 0 - none 82.0 250

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    0 - none
    Length
    82.0
    Clamp thickness
    28.0 - 72.0
    Orderidentifier
    JT2-D-6-5,5/6,3x82 F12 EJOGUARD
    Unit
    250
    JT2-D-6-5,5/6,3x102 F12 EJOGUARD 3563800674 5.5 6.3 0 - none 102.0 250

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    0 - none
    Length
    102.0
    Clamp thickness
    48.0 - 88.0
    Orderidentifier
    JT2-D-6-5,5/6,3x102 F12 EJOGUARD
    Unit
    250
    JT2-D-6-5,5/6,3x122 F12 EJOGUARD 3567000674 5.5 6.3 0 - none 122.0 250

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    0 - none
    Length
    122.0
    Clamp thickness
    68.0 - 112.0
    Orderidentifier
    JT2-D-6-5,5/6,3x122 F12 EJOGUARD
    Unit
    250
    JT2-D-6-5,5/6,3x152 F12 EJOGUARD 3565900674 5.5 6.3 0 - none 152.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    0 - none
    Length
    152.0
    Clamp thickness
    98.0 - 142.0
    Orderidentifier
    JT2-D-6-5,5/6,3x152 F12 EJOGUARD
    Unit
    100
    JT2-D-6-5,5/6,3x172 F12 EJOGUARD 3566400674 5.5 6.3 0 - none 172.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    0 - none
    Length
    172.0
    Clamp thickness
    118.0 - 162.0
    Orderidentifier
    JT2-D-6-5,5/6,3x172 F12 EJOGUARD
    Unit
    100
    3566600674 5.5 6.3 0 - none 192.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    0 - none
    Length
    192.0
    Clamp thickness
    138.0 - 182.0
    Orderidentifier
    Unit
    100
    JT2-D-6-5,5/6,3x232 F12 EJOGUARD 3566800674 5.5 6.3 0 - none 232.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    0 - none
    Length
    232.0
    Clamp thickness
    180.0 - 220.0
    Orderidentifier
    JT2-D-6-5,5/6,3x232 F12 EJOGUARD
    Unit
    100
    JT2-D-6-5,5/6,3x262 F12 EJOGUARD 3566900674 5.5 6.3 0 - none 262.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    0 - none
    Length
    262.0
    Clamp thickness
    208.0 - 252.0
    Orderidentifier
    JT2-D-6-5,5/6,3x262 F12 EJOGUARD
    Unit
    100
    JT2-D-6-5,5/6,3x62 F12 E16 EJOGUARD 3563411674 5.5 6.3 250

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    Length
    Clamp thickness
    Orderidentifier
    JT2-D-6-5,5/6,3x62 F12 E16 EJOGUARD
    Unit
    250
