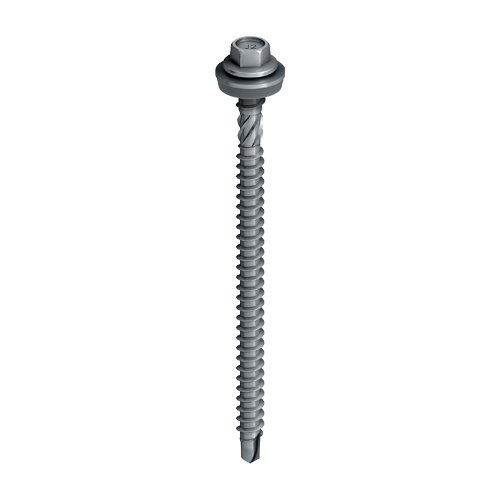

EJOT® self-drilling screw JT2-D-2-6.5/7.0 EJOGUARD
Specification
-
Applications
- Fastening sandwich panels to timber subsructure
-
Properties
- Case-hardened steel
- EJOGUARD corrosion protection
- Stainless steel sealing washer
- Pre-assembled sealing washer
- High thread
-
Technical specifications
Diameter: 6.5 mm
Drilling capacity tI + tII: 2.0 mm
Drive: Hexagon A/F8
ø high thread: 7.0 mm
Installation rotation speed: max. 1500 rpm
Filter
Selected filters
| Orderidentifier | Article Number | Length mm | Unit |
|---|---|---|---|
| 3561000624 | 100.0 | 100 | |
Specifications
|
|||
| JT2-D-2-6.5/7.0x100-E19 EJOGUARD | 3561021624 | 100.0 | 100 |
Specifications
|
|||
| JT2-D-2-6.5/7.0x140-E19 EJOGUARD | 3561421624 | 140.0 | 100 |
Specifications
|
|||
| JT2-D-2-6.5/7.0x160-E19 EJOGUARD | 3561621624 | 160.0 | 100 |
Specifications
|
|||
| JT2-D-2-6.5/7.0x260-E19 EJOGUARD | 3562621624 | 160.0 | 100 |
Specifications
|
|||
| JT2-D-2-6.5/7.0x180-E19 EJOGUARD | 3561821624 | 180.0 | 100 |
Specifications
|
|||
| JT2-D-2-6.5/7.0x200-E19 EJOGUARD | 3562021624 | 200.0 | 100 |
Specifications
|
|||
| JT2-D-2-6.5/7.0x220-E19 EJOGUARD | 3562221624 | 220.0 | 100 |
Specifications
|
|||
| JT2-D-2-6.5/7.0x240-E19 EJOGUARD | 3562421624 | 240.0 | 100 |
Specifications
|
|||
| JT2-D-2-6.5/7.0x280-E19 EJOGUARD | 3562821624 | 280.0 | 100 |
Specifications
|
|||
| JT2-D-2-6.5/7.0x300-E19 EJOGUARD | 3563021624 | 300.0 | 100 |
Specifications
|
|||
| JT2-D-2-6.5/7.0x360-E19 EJOGUARD | 3563621624 | 360.0 | 50 |
Specifications
|
|||
| JT2-D-2-6,5/7,0x100 F12 E16 EJOGUARD | 3561011624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x100 F12 E19 EJOGUARD | 3561012624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x120 F12 EJOGUARD | 3561200624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x120 F12 E16 EJOGUARD | 3561211624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x120 F12 E19 EJOGUARD | 3561212624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x120 F12 V16 EJOGUARD | 3561221624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x140 F12 EJOGUARD | 3561400624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x140 F12 E16 EJOGUARD | 3561411624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x140 F12 E19 EJOGUARD | 3561412624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x160 F12 EJOGUARD | 3561600624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x160 F12 E16 EJOGUARD | 3561611624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x160 F12 E19 EJOGUARD | 3561612624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x180 F12 EJOGUARD | 3561800624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x180 F12 E16 EJOGUARD | 3561811624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x180 F12 E19 EJOGUARD | 3561812624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x200 F12 EJOGUARD | 3562000624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x200 F12 E16 EJOGUARD | 3562011624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x200 F12 E19 EJOGUARD | 3562012624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x220 F12 EJOGUARD | 3562200624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x220 F12 E16 EJOGUARD | 3562211624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x220 F12 E19 EJOGUARD | 3562212624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x240 F12 EJOGUARD | 3562400624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x240 F12 E16 EJOGUARD | 3562411624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x240 F12 E19 EJOGUARD | 3562412624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x260 F12 EJOGUARD | 3562600624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x260 F12 E16 EJOGUARD | 3562611624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x260 F12 E19 EJOGUARD | 3562612624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x280 F12 EJOGUARD | 3562800624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x280 F12 E16 EJOGUARD | 3562811624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x280 F12 E19 EJOGUARD | 3562812624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x300 F12 EJOGUARD | 3563000624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x300 F12 E16 EJOGUARD | 3563011624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x300 F12 E19 EJOGUARD | 3563012624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x360 F12 EJOGUARD | 3563600624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x360 F12 E16 EJOGUARD | 3563611624 | 100 | |
Specifications
|
|||
| JT2-D-2-6,5/7,0x360 F12 E19 EJOGUARD | 3563612624 | 50 | |
Specifications
|
