EJOT® self-drilling screw JT2-3H-5.5

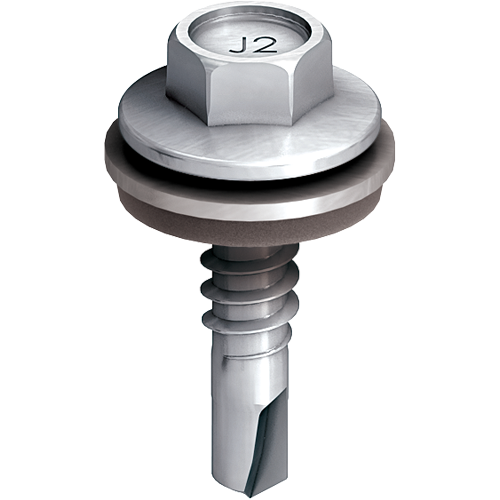

JT2-3H-5-5_foto2

Specification

  • Applications

    • Side lap stitching of profiled steel sheet
    • Fastening profiled steel sheet to 1–2.5 mm steel substructure

  • Properties

    • Case-hardened steel, zinc-plated
    • Steel sealing washer, zinc-plated
    • Pre-assembled sealing washer
    • With free spin zone under screw head for side lap stitching

  • Technical specifications

    • Drilling capacity tI + tII: 1.5 + 1.5 mm
    • Drive: Hexagon AF8
Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
JT2-3H-5.5x19-V16 3598221634 5.5 16 19.0 3.0 500

Specifications

ø
5.5
Ø Sealing Washer mm
16
Length
19.0
Clamp thickness
3.0
Fastener material
Carbon Steel
Orderidentifier
JT2-3H-5.5x19-V16
Unit
500
