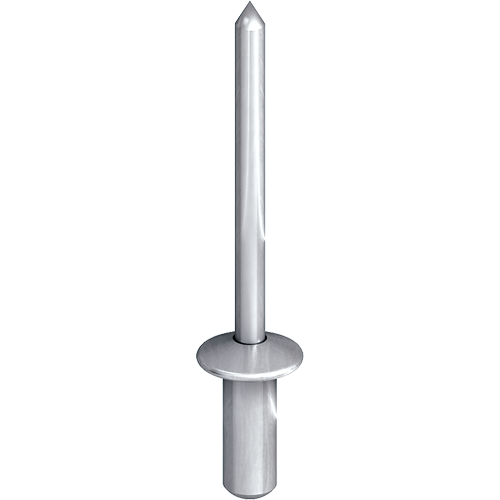

Closed-end rivet ECORIV® Al/E-4.8

Specification

  • Applications

    • For side lap stitching of profiled sheet
  • Properties

    • Rivet body made of aluminium (Al)
    • Mandrel made of stainless steel (E)
    • Captive locked
  • Technical specifications

    • For a water-tight seal a sealing ring can be used
    • The sealing ring option is the full code with a (W) at the end

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Pilot Hole Ø mm Clamp thickness mm Unit
    Closed-end rivet ECORIV AL/E 4.8x8.0 9334403000 4.8 8.0 4.9 0.5 - 3.5 500

    Specifications

    ø
    4.8
    Length
    8.0
    Pilot Hole Ø
    4.9
    Clamp thickness
    0.5 - 3.5
    Orderidentifier
    Closed-end rivet ECORIV AL/E 4.8x8.0
    Unit
    500
    Closed-end rivet ECORIV AL/E 4.8x10.0 9334404000 4.8 10.0 4.9 3.0 - 5.0 500

    Specifications

    ø
    4.8
    Length
    10.0
    Pilot Hole Ø
    4.9
    Clamp thickness
    3.0 - 5.0
    Orderidentifier
    Closed-end rivet ECORIV AL/E 4.8x10.0
    Unit
    500
    Closed-end rivet ECORIV AL/E 4.8x12.0 9334405000 4.8 12.0 4.9 4.5 - 6.5 500

    Specifications

    ø
    4.8
    Length
    12.0
    Pilot Hole Ø
    4.9
    Clamp thickness
    4.5 - 6.5
    Orderidentifier
    Closed-end rivet ECORIV AL/E 4.8x12.0
    Unit
    500
    Closed-end rivet ECORIV AL/E 4.8x14.0 9334406000 4.8 14.0 4.9 7.5 - 9.5 500

    Specifications

    ø
    4.8
    Length
    14.0
    Pilot Hole Ø
    4.9
    Clamp thickness
    7.5 - 9.5
    Orderidentifier
    Closed-end rivet ECORIV AL/E 4.8x14.0
    Unit
    500
    Closed-end rivet ECORIV AL/E 4.8x16.0 9334408000 4.8 16.0 4.9 9.0 - 11.0 500

    Specifications

    ø
    4.8
    Length
    16.0
    Pilot Hole Ø
    4.9
    Clamp thickness
    9.0 - 11.0
    Orderidentifier
    Closed-end rivet ECORIV AL/E 4.8x16.0
    Unit
    500
    Closed-end rivet ECORIV AL/E 4.8x22.0 9334411000 4.8 22.0 4.9 12.5 - 16.0 500

    Specifications

    ø
    4.8
    Length
    22.0
    Pilot Hole Ø
    4.9
    Clamp thickness
    12.5 - 16.0
    Orderidentifier
    Closed-end rivet ECORIV AL/E 4.8x22.0
    Unit
    500
