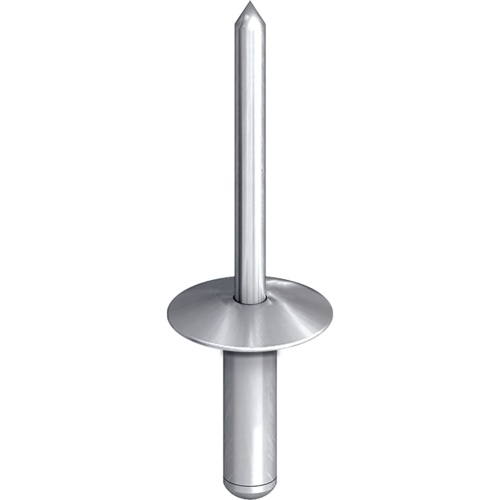

Blind rivet ECORIV® aluminium/stainless steel K14

Specification

  • Applications

    • For fastening to steel and aluminium substructures
    • To form floating points on aluminium substructures
  • Properties

    • Rivet body made of aluminium (Al)
    • Mandrel made of stainless steel (E)
    • Captive locked
    • Large head, open
    • ETA-22/0641
  • Note

    Building authorities-approved rivets according to Z-14.1-4 available upon request.

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Pilot Hole Ø mm Clamp thickness mm Unit
    Blind rivet ECORIV AL/E 5.0x8.0 K14 9332503000 5.0 8.0 5.1 2.0 - 3.5 500

    Specifications

    ø
    5.0
    Length
    8.0
    Pilot Hole Ø
    5.1
    Clamp thickness
    2.0 - 3.5
    Material
    Stainless Steel
    Orderidentifier
    Blind rivet ECORIV AL/E 5.0x8.0 K14
    Unit
    500
    Blind rivet ECORIV AL/E 5.0x10.0 K14 9332504000 5.0 10.0 5.1 4.0 500

    Specifications

    ø
    5.0
    Length
    10.0
    Pilot Hole Ø
    5.1
    Clamp thickness
    4.0
    Material
    Stainless Steel
    Orderidentifier
    Blind rivet ECORIV AL/E 5.0x10.0 K14
    Unit
    500
    Blind rivet ECORIV AL/E 5.0x12.0 K14 9332505000 5.0 12.0 5.1 6.0 500

    Specifications

    ø
    5.0
    Length
    12.0
    Pilot Hole Ø
    5.1
    Clamp thickness
    6.0
    Material
    Stainless Steel
    Orderidentifier
    Blind rivet ECORIV AL/E 5.0x12.0 K14
    Unit
    500
    Blind rivet ECORIV AL/E 5.0x14.0 K14 9332506000 5.0 14.0 5.1 7.5 500

    Specifications

    ø
    5.0
    Length
    14.0
    Pilot Hole Ø
    5.1
    Clamp thickness
    7.5
    Material
    Stainless Steel
    Orderidentifier
    Blind rivet ECORIV AL/E 5.0x14.0 K14
    Unit
    500
    Blind rivet ECORIV AL/E 5.0x16.0 K14 9332508000 5.0 16.0 5.1 9.5 - 12.0 500

    Specifications

    ø
    5.0
    Length
    16.0
    Pilot Hole Ø
    5.1
    Clamp thickness
    9.5 - 12.0
    Material
    Stainless Steel
    Orderidentifier
    Blind rivet ECORIV AL/E 5.0x16.0 K14
    Unit
    500
    Blind rivet ECORIV AL/E 5.0x18.0 K14 9332509000 5.0 18.0 5.1 11.5 - 13.5 500

    Specifications

    ø
    5.0
    Length
    18.0
    Pilot Hole Ø
    5.1
    Clamp thickness
    11.5 - 13.5
    Material
    Stainless Steel
    Orderidentifier
    Blind rivet ECORIV AL/E 5.0x18.0 K14
    Unit
    500
    Blind rivet ECORIV AL/E 5.0x20.0 K14 9332510000 5.0 20.0 5.1 12.0 500

    Specifications

    ø
    5.0
    Length
    20.0
    Pilot Hole Ø
    5.1
    Clamp thickness
    12.0
    Material
    Stainless Steel
    Orderidentifier
    Blind rivet ECORIV AL/E 5.0x20.0 K14
    Unit
    500
