EJOT® Stainless steel self-drilling screw JT4-3H/5-5.5

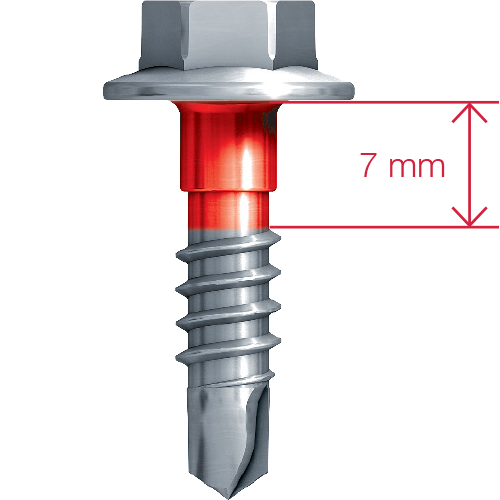

JT4-3H-7-5_5x21_foto1
JT4-3H5-5,5

Specification

  • Applications

    • To form floating and fixed points on substructures of rear ventilated facades
    • Fastening pre-drilled stainless steel or aluminium wall brackets to aluminium support profiles
    • For component assemblies from 6.0–7.0 mm (component I + component II)

  • Technical specifications

    • Drilling capacity: 2.0 mm
    • Drive: hexagon A/F 8
    • Flange head: Ø 13 mm
    • Material: A2 stainless steel
    • Length non-threaded part: 7.0 mm
Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Unit
JT4-3H/7-5.5x21 7380675300 5.5 0 - none 21.0 500

Specifications

ø
5.5
Ø Sealing Washer mm
0 - none
Length
21.0
Fastener material
Stainless Steel
Clamp thickness
7.0
Orderidentifier
JT4-3H/7-5.5x21
Unit
500

Similar Products

JT4-3H-7-5_5x21_foto2

JT4-3H/5-5.5

for component assemblies from 3.1 - 5.0 mm
JT9-3H-5-5,5

JT9-3H/5-5.5

For component assemblies from 3.1 - 5.0 mm
