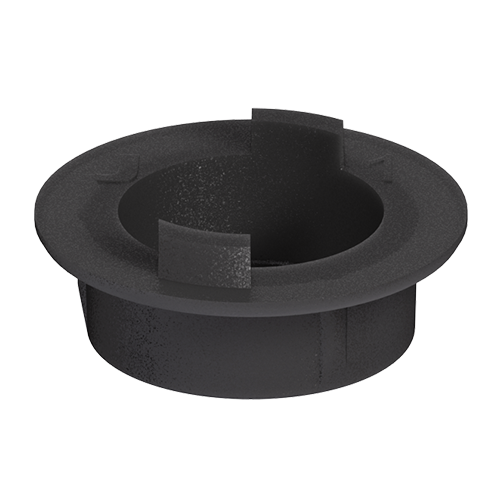

XT centring grommets S (sliding point)
Specification
-
Application range
- For fastening facade claddings in combination with LT-XT screws with head diameter 16 mm
- To form sliding points
-
Properties
- Black coloured plastic
- UV-resistant
-
Advantages
- All holes in the facade cladding are produced with the same diameter (11 mm), which can be done efficiently at the shop floor
- No rivet installation gauge, no drilling gauge necessary
- Fast assembly in combination with LT-XT screws
- Easily revisionable panel fastening
- The 0.5 collar of the grommet prevents direct contact between screw head and panel surface
- The hole in the middle serves for the centred positioning of the screw
Notice
Usability of grommets and LT-XT screws must be agreed with the respective panel manufacturer. Please note the respective approval for the exterior wall cladding and the assembly instructions of the manufacturer
| Orderidentifier | Article Number | Unit |
|---|---|---|
| EJOT Centring bush ø 11/4 S | 3010014700 | 500 |
