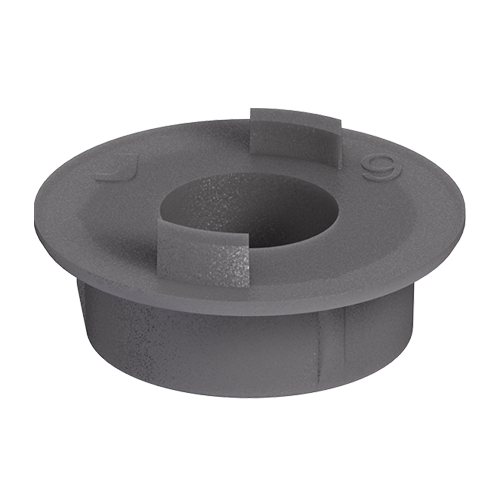

XT centring grommets F (fixed point)

zentrierhuelse-xt-fp_500x500

Specification

  • Application range

    • For fastening facade claddings in combination with LT-XT screws with head diameter 16 mm
    • To form fixed points

  • Properties

    • Grey coloured plastic
    • UV-resistant

  • Advantages

    • All holes in the facade cladding are produced with the same diameter (11 mm), which can be done efficiently at the shop floor
    • No rivet installation gauge, no drilling gauge necessary
    • Fast assembly in combination with LT-XT screws
    • Easily revisionable panel fastening
    • The 0.5 collar of the grommet prevents direct contact between screw head and panel surface
    • The hole in the middle serves for the centred positioning of the screw

    Notice
    Usability of grommets and LT-XT screws must be agreed with the respective panel manufacturer. Please note the respective approval for the exterior wall cladding and the assembly instructions of the manufacturer.

Orderidentifier Article Number Unit
EJOT Centring bush ø11/4 F 3010013700 500

Specifications

Orderidentifier
EJOT Centring bush ø11/4 F
Unit
500
