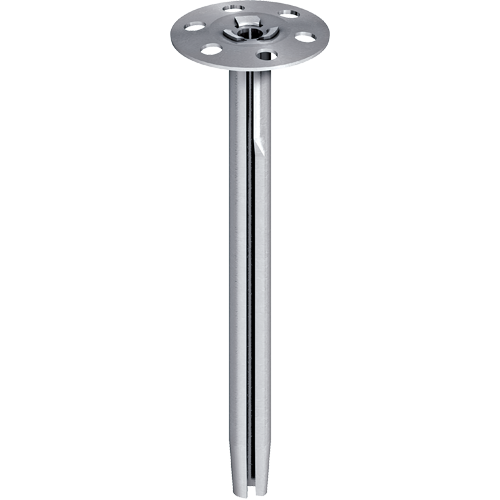

EJOT® Metal insulation support anchor DMH

Specification

  • Applications

    • For fixing hard insulation materials
    • In combination with the EJOT® DMT metal insulation stress plate and also for soft insulating materials
    • For fixing insulation materials for high fire protection requirements

    Notice
    The EJOT® insulation support anchors are used to fasten soft and hard insulating material in rear ventilated facades. The insulation board fastening is carried-out according to DIN 18516-1.

    Rotary hole drilling is obligatory in aerated concrete and perforated brick masonry.

    For the usage in non-accessible areas of rear ventilated facades, we recommend the metal insulation support anchor made of stainless steel.

  • Properties

    • Easy installation by striking in, self-expanding
    • Easy installation
    • Fire performance class A1: non-combustible according to DIN EN 13501-1:2010-01 (test certificate no. PZ 3.1/17-226-1)
  • Technical specifications

    Characteristic values

    • Plate diameter: 35 mm
    • Shaft diameter: 8 mm
    • Drill bitdiameter: 8 mm
    • Drill hole depth ≥ t: 60 mm
    • Embedment depth ≥ hv: 40 mm
    • Axial distance a ≥: 160 mm
    • Edge distance ar≥: 80 mm
    • Minimum component thickness hmin: 100 mm

    Characteristic loads

    Recommended tensile loads Frec

    • Concrete ≥ B25: 0,20 kN
    • Solid sand-lime brick: 0,20 kN
    • Bricks: 0,20 kN
    • Vertically perforated clay bricks: 0,05 kN
    • Perforated sand-lime brick: 0,05 kN

    Recommended transverse loads Frec

    • Concrete ≥ B25: 0,25 kN
    • Solid sand-lime brick: 0,25 kN
    • Bricks: 0,25 kN
    • Vertically perforated clay bricks: 0,10 kN
    • Perforated sand-lime brick: 0,15 kN

Filter

Selected filters

    Orderidentifier Article Number Thread Diameter mm Material Insulation thickness mm Anchor length mm Unit
    DMH-8x80-V 9700030301 8.0 Carbon steel, aluzinc coated 30.0 80.0 250

    Specifications

    Thread Diameter
    8.0
    Material
    Carbon steel, aluzinc coated
    Insulation thickness
    30.0
    Anchor length
    80.0
    Orderidentifier
    DMH-8x80-V
    Unit
    250
    DMH-8x80-E 9700030302 8.0 Stainless Steel 1.0 - 30.0 80.0 250

    Specifications

    Thread Diameter
    8.0
    Material
    Stainless Steel
    Insulation thickness
    1.0 - 30.0
    Anchor length
    80.0
    Orderidentifier
    DMH-8x80-E
    Unit
    250
    DMH-8x110-V 9700030602 8.0 Carbon steel, aluzinc coated 30.0 - 60.0 110.0 250

    Specifications

    Thread Diameter
    8.0
    Material
    Carbon steel, aluzinc coated
    Insulation thickness
    30.0 - 60.0
    Anchor length
    110.0
    Orderidentifier
    DMH-8x110-V
    Unit
    250
    DMH-8x110-E 9700033603 8.0 Stainless Steel 30.0 - 60.0 110.0 250

    Specifications

    Thread Diameter
    8.0
    Material
    Stainless Steel
    Insulation thickness
    30.0 - 60.0
    Anchor length
    110.0
    Orderidentifier
    DMH-8x110-E
    Unit
    250
    DMH-8x140-V 9700030603 8.0 Carbon steel, aluzinc coated 60.0 - 90.0 140.0 250

    Specifications

    Thread Diameter
    8.0
    Material
    Carbon steel, aluzinc coated
    Insulation thickness
    60.0 - 90.0
    Anchor length
    140.0
    Orderidentifier
    DMH-8x140-V
    Unit
    250
    DMH-8x140-E 9700036904 8.0 Stainless Steel 60.0 - 90.0 140.0 250

    Specifications

    Thread Diameter
    8.0
    Material
    Stainless Steel
    Insulation thickness
    60.0 - 90.0
    Anchor length
    140.0
    Orderidentifier
    DMH-8x140-E
    Unit
    250
    DMH-8x170-V 9700030912 8.0 Carbon steel, aluzinc coated 90.0 - 120.0 170.0 250

    Specifications

    Thread Diameter
    8.0
    Material
    Carbon steel, aluzinc coated
    Insulation thickness
    90.0 - 120.0
    Anchor length
    170.0
    Orderidentifier
    DMH-8x170-V
    Unit
    250
    DMH-8x170-E 9700035912 8.0 Stainless Steel 90.0 - 120.0 170.0 250

    Specifications

    Thread Diameter
    8.0
    Material
    Stainless Steel
    Insulation thickness
    90.0 - 120.0
    Anchor length
    170.0
    Orderidentifier
    DMH-8x170-E
    Unit
    250
    DMH-8x200-V 9700031215 8.0 Carbon steel, aluzinc coated 160.0 200.0 250

    Specifications

    Thread Diameter
    8.0
    Material
    Carbon steel, aluzinc coated
    Insulation thickness
    160.0
    Anchor length
    200.0
    Orderidentifier
    DMH-8x200-V
    Unit
    250
    DMH-8x200-E 9700035215 8.0 Stainless Steel 120.0 - 150.0 200.0 250

    Specifications

    Thread Diameter
    8.0
    Material
    Stainless Steel
    Insulation thickness
    120.0 - 150.0
    Anchor length
    200.0
    Orderidentifier
    DMH-8x200-E
    Unit
    250
