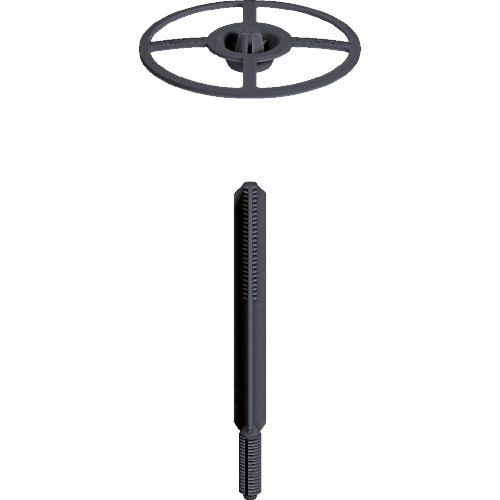

  5. EJOT® Insulation support anchor DH - 2 Piece

EJOT® Insulation support anchor DH - 2 Piece

Specification

  • Applications

    • For fixing insulating material in the rear ventilated facade (VHF).

    Advantages

    • Prevents "quilt effect" (indentations in the insulation) with retrofitting of the washer
    • Prevents gaping of the joints between the individual insulation panels at the joining edges
    • Packing and handling volume is reduced by over 60% compared to one-part insulation support anchors
    • Installation depth limiter guarantees defined installation independent of the substrate
    • Equal installation depth for masonry and concrete prevents wrong orders.
    • High-quality plastic material guarantees process reliable installation even with thick insulation
    • For efficient and flexible storage

  • Properties

    • Order descriptions correspond to the
    • High-grade plastic material
    • easy installation with no additional expansion element
    • All-purpose for all building materials
    • flexible stress plate
    • Reduced "quilt effect", due to defined installation depth
    • Minimal packing volume
    • Minimal effort needed to drive in the anchor
  • Technical specifications

    • Drill bit diameter: 8 mm
    • Drill hole depth ≥ t: 40 mm
    • Embedment depth ≥ hv: 30 mm
    • Disc washer diameter: 90 mm
    • Thermal conductivity coefficient: 0.0001 W/K
    • Carrying capacity (pull over washer): 0.2 kN
Attention: Please also order the appropriate number of washers!

Filter

Selected filters

    Orderidentifier Article Number Thread Diameter mm Material Insulation thickness mm Anchor length mm Unit
    Washer DH 8550090999 90.0 Plastic 300

    Specifications

    Thread Diameter
    90.0
    Material
    Plastic
    Insulation thickness
    Anchor length
    Orderidentifier
    Washer DH
    Unit
    300
    Shaft DH 60 8550060999 8.0 Plastic 60.0 60.0 300

    Specifications

    Thread Diameter
    8.0
    Material
    Plastic
    Insulation thickness
    60.0
    Anchor length
    60.0
    Orderidentifier
    Shaft DH 60
    Unit
    300
    Shaft DH 80 8550080999 8.0 Plastic 80.0 80.0 300

    Specifications

    Thread Diameter
    8.0
    Material
    Plastic
    Insulation thickness
    80.0
    Anchor length
    80.0
    Orderidentifier
    Shaft DH 80
    Unit
    300
    Shaft DH 100 8550100999 8.0 Plastic 100.0 100.0 300

    Specifications

    Thread Diameter
    8.0
    Material
    Plastic
    Insulation thickness
    100.0
    Anchor length
    100.0
    Orderidentifier
    Shaft DH 100
    Unit
    300
    Shaft DH 120 8550120999 8.0 Plastic 120.0 120.0 300

    Specifications

    Thread Diameter
    8.0
    Material
    Plastic
    Insulation thickness
    120.0
    Anchor length
    120.0
    Orderidentifier
    Shaft DH 120
    Unit
    300
    Shaft DH 140 8550140999 8.0 Plastic 140.0 140.0 300

    Specifications

    Thread Diameter
    8.0
    Material
    Plastic
    Insulation thickness
    140.0
    Anchor length
    140.0
    Orderidentifier
    Shaft DH 140
    Unit
    300
    Shaft DH 160 8550160999 8.0 Plastic 160.0 160.0 300

    Specifications

    Thread Diameter
    8.0
    Material
    Plastic
    Insulation thickness
    160.0
    Anchor length
    160.0
    Orderidentifier
    Shaft DH 160
    Unit
    300
    Shaft DH 180 8550180999 8.0 Plastic 180.0 180.0 300

    Specifications

    Thread Diameter
    8.0
    Material
    Plastic
    Insulation thickness
    180.0
    Anchor length
    180.0
    Orderidentifier
    Shaft DH 180
    Unit
    300
    Shaft DH 200 8550200999 8.0 Plastic 200.0 200.0 300

    Specifications

    Thread Diameter
    8.0
    Material
    Plastic
    Insulation thickness
    200.0
    Anchor length
    200.0
    Orderidentifier
    Shaft DH 200
    Unit
    300
    Shaft DH 220 8550220999 8.0 Plastic 220.0 220.0 300

    Specifications

    Thread Diameter
    8.0
    Material
    Plastic
    Insulation thickness
    220.0
    Anchor length
    220.0
    Orderidentifier
    Shaft DH 220
    Unit
    300
