JF2-2H-4.8x19-collated
Side lap stitching of profiled steel sheets

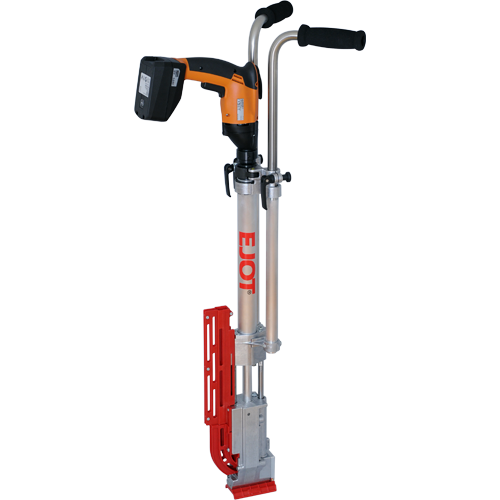

EJOFAST® JF screwdriver
Specification
-
Applications
- For efficient fastening of collated EJOFAST® JF side lap screws
- Maintenance-free, brushless motor with a very high degree of efficiency
- Tested for over 500,000 single fixings
- Over 1,000 recharge cycles per battery pack
- Powerful up to 30 Nm
Included in delivery
- EJOFAST® JF screwdriver incl. drive unit
- 1 tool kit
- Size 5 socket head wrench
- Size 8 socket head wrench
- Spanner wrench A/F 10
- Metal transport box
- EJOFAST® JF screwdriver operating manual
- Drive unit operating manual
- 1 spare battery
- 1 battery charger
-
Properties
- Fastest installation with collated screws (25 per cartridge)
- Clean and even results
- Optimum ergonomics for fatigue-free upright work
- Attachments for various trapezoidal sheets
- Flexible system for screws with and without sealing washers
- Robust fastening system for construction site use
-
Technical specifications
Technical Data
- Battery voltage: 18.0 Volt
- Battery capacity: 3.0 Ah
- Load speed: 0-1 500 rpm
- Idle speed: 0-1 700 rpm
- Max. torque (hard/soft): 30/10 Nm
- Weight: 8.1 kg
Try it now - with our rental equipment
Filter
Selected filters
| Orderidentifier | Article Number | Weight kg | Battery capacity Ah | Unit |
|---|---|---|---|---|
| Nut SW8x40 - JF screwdriver | 9152200001 | 8.1 | 3.0 | |
Specifications
|
||||
| Holding slider left - JF screwdriver | 9152240005 | 8.1 | 3.0 | |
Specifications
|
||||
| Holding slider right - JF screwdriver | 9152240006 | 8.1 | 3.0 | |
Specifications
|
||||
| Axis 1 holding slider - JF screwdriver | 9152240007 | 8.1 | 3.0 | |
Specifications
|
||||
| Axis 2 holding slider - JF screwdriver | 9152240008 | 8.1 | 3.0 | |
Specifications
|
||||
| Slider left - JF screwdriver | 9152250002 | 8.1 | 3.0 | |
Specifications
|
||||
| Slider right - JF screwdriver | 9152250003 | 8.1 | 3.0 | |
Specifications
|
||||
| Spring - JF screwdriver | 9152250004 | 8.1 | 3.0 | |
Specifications
|
||||
| Stud bolt - JF screwdriver | 9152250013 | 8.1 | 3.0 | |
Specifications
|
||||
| Magazine shaft left - JF screwdriver | 9152260003 | 8.1 | 3.0 | |
Specifications
|
||||
| Magazine shaft right - JF screwdriver | 9152260004 | 8.1 | 3.0 | |
Specifications
|
||||
| Profile plate 23/34 - JF screwdriver | 9152260009 | 8.1 | 3.0 | |
Specifications
|
