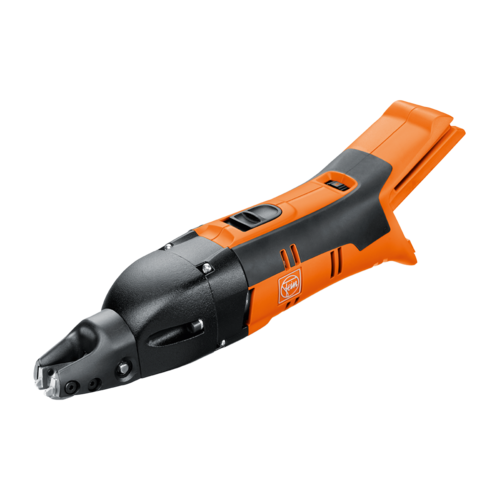

ABBS 18 1.6 E Select

Specification

  • Applications

    • Handy slitting shears, suitable for bends for metals and non-metals
  • Properties

    • Fast work progress due to excellent view of the cut through open cutting head
    • Left and right curved cut, as well as distortion-free cutting possible with just one continuous chip
    • QuickIN quick-change system for fast, key-free blade change without adjustment
    • Excellent ergonomics and low weight
    • Motor with outstanding performance and service life
    • Cutting blade with excellent service life
    • Cutting capacity with one battery charge 120 m
    • Clean swarf removal prevents scratching on the work piece and injuries
  • Technical specifications

    • Battery voltage: 14.4V
    • Stroke rate : 2 000 - 3 500 rpm
    • Cutting speed: 5 - 8 m/min
    • Steel up to 400 N/mm²: 1.6 mm
    • Steel up to 600 N/mm²: 1.2 mm
    • Steel up to 800 N/mm²: 0.8 mm
    • Nonferrous metal up to 250 N/mm²: 2.0 mm
    • Cutting width: 5.0 mm
    • Radius of the smallest curve: 90 (30)¹ mm
    • Imersion diameter: 15 (8)¹ mm
    • Battery pack: X
    ¹ with curve knife

Filter

Selected filters

    Orderidentifier Article Number Unit
    Cordless slitting shears ABBS 18 1.6 E Select 9150350000 1

    Specifications

    Orderidentifier
    Cordless slitting shears ABBS 18 1.6 E Select
    Unit
    1
    Cutting dies 9559966005 1

    Specifications

    Orderidentifier
    Cutting dies
    Unit
    1
    Cutting knife for sheet steel up to 400 N/mm² 9559966007 1

    Specifications

    Orderidentifier
    Cutting knife for sheet steel up to 400 N/mm²
    Unit
    1
