EJOT® Expansion joint profile – corner EJOT® Pro DFP06-E/01

Applications

• Profile with glass fiber mesh for forming vertical building expansion joints in flat surface areas with External Thermal Insulation Composite Systems.

Properties

• Exact and clean plaster finish
• Can be used for joint widths of 20–30 mm
• Better plaster grip thanks to the grooved surface
• One-sided protrusion of the joint loop by 5 cm

Technical specifications

• Hard and soft PVC profile
• Glass fiber mesh 160 g alkali-resistant and non-shifting
• Two mesh flags, each 12.5 cm wide

Notes:

• Store in a cool and dry place
• Transport and storage lying down
• The joint behind the profile must be filled with insulating material.

Processing guidelines

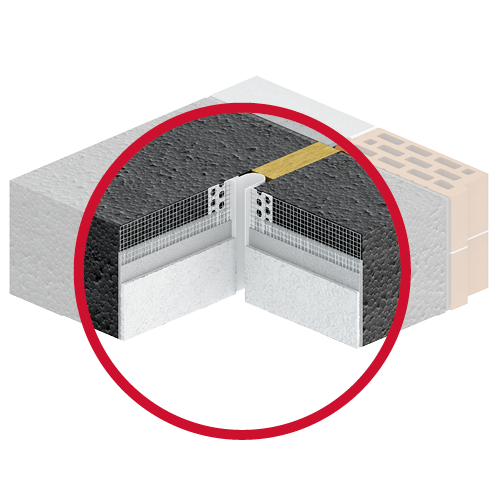

When bonding the insulation boards, create a flush joint with clean edges depending on the application. We recommend using a spacer. To ensure sufficient movement after installation, we recommend a joint width of approx. 25 mm. Embed the profile completely into the previously applied reinforcement compound, starting from the bottom, and align it so that it is flush. The expansion joint profiles must be installed from bottom to top. The excess joint loop must always point upwards and will be overlapped by the next profile during further installation. This ensures optimum water flow. When applying the surface reinforcement, the glass fiber mesh must be overlapped and brought up to the pull-off edge of the expansion joint profile.
