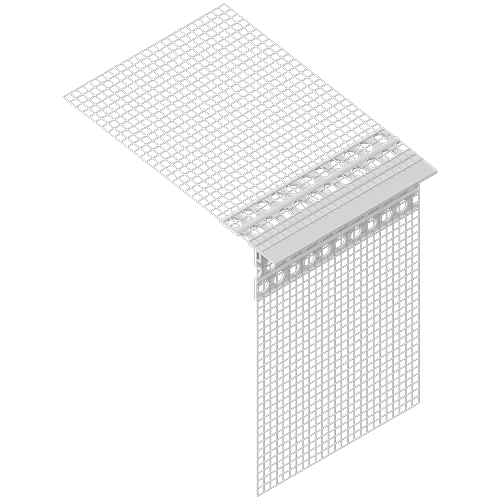

Window sill profile plaster 13 mm, FBP-P06-13/01

Applications

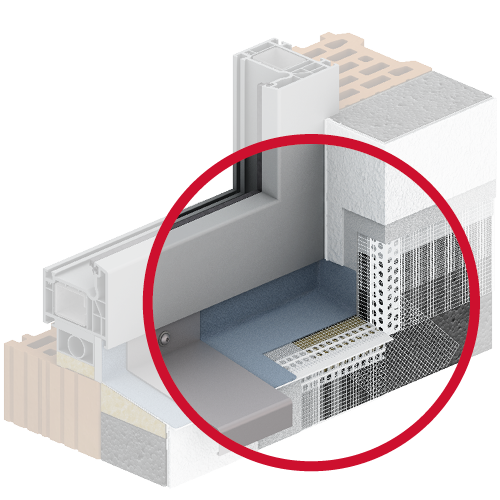

• Profile to support the formation of a second sealing level and a clean plaster finish under the window sill. The upper leg, welded with a mesh strip, is used for integration into a suitable sealing compound in the area under the window sill. The required slope of at least 5 degrees for water drainage is maintained by the profile geometry. A material taper on the upper leg allows the inclination to be flexibly adjusted on site.

Properties

• Exact and clean plaster finish
• Required window sill inclinations can be achieved thanks to flexible profile geometry
• Rectangular plug-in connector for aligned and perpendicular edges
• Targeted drainage of water

Technical specifications

• Hard PVC profile with glass fiber mesh 160 g alkali-resistant and non-shifting
• Glass fiber mesh 12.5 cm

Notes:

• Store in a cool and dry place
• Transport and storage lying down
• Sealing film is not included in the scope of delivery – sealing must be carried out on site

Processing guidelines
Apply the reinforcement compound across the entire width of the mesh strip, below the edge of the insulation material. Embed the profile into the fresh reinforcement compound, ensuring that it is level and aligned. The sealing under the window sill is made using suitable sealing materials, which must be installed in accordance with the manufacturer's specifications. When applying the surface reinforcement, the glass fiber mesh must be overlapped and brought up to the pull-off edge. In addition, a diagonal mesh layer (diagonal reinforcement) is inserted in the corners. We recommend using prefabricated EJOT reinforcement arrows.
