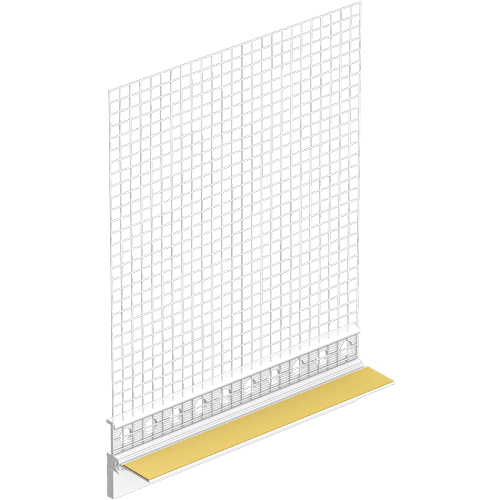

EJOTĀ® Pro RAP Giga Flex slim

Specification

  • Applications

    For an exact, aligned and perpendicular plaster connection on roller shutter guide rails where high compensatory movements must be expected.

  • Properties

    • Increased, three-dimensional movement absorption
    • Small construction width (7 mm)
    • Water-bearing level at the level of the plaster finish
    • Easy to process due to stop bar
    • Flexible transition to the tear-off tab
    • Suitable for insulation thicknesses up to 300 mm and window sizes up to 10 m²
    • Connection permanently impervious to driving rain
    • Exact and clean plaster finish, easy processing
    • Maintenance-free connection joint
    • Integrated transfer tape for attaching the cover film
    • No subsequent cleaning work
  • Technical specifications

    PVC-U (unplasticized) profile with fiber glass mesh 160 g alkali-resistant and non-shifting
    Mesh flag 12.5 cm. Polyethylene foam tape impervious to driving rain 10 x 2 mm and 4 x 3 mm with high adhesive strength, optimal aging and moisture resistance as well as maximum resistance to UV and ozone radiation
    Movements are permanently absorbed via the integrated PVC-P (plasticized) loop. Self-adhesive transfer tape 12 mm for holding the protective film

    Processing guidelines
    The surface must be level, dry and free of dust and grease. Any residues that reduce adhesion must be removed. Carry out an adhesive test!
    Application and substrate temperature +5 to +40 ° C. Cut the reveal bead with mesh to the required length with special scissors for miters or beads. Stick the profile onto the window frame and press it on firmly. Stick the cover film onto the provided transfer tape on the flap. Briefly fold the mesh forwards to apply the reinforcement compound. The mesh is then embedded in the wet reinforcement compound and filled in with a spatula. After completing the work, the protective flap must be bent towards the trigger bar and then pulled off from top to bottom parallel to the profile. Follow the processing guidelines!

    Indications

    • Store in a cool and dry place
    • Transport and storage lying down
Orderidentifier Article Number measure mm Unit
EJOT Pro RAP07-GFs/01-240-160-WN-12,5 8804040001 7 25

Specifications

measure
7
Orderidentifier
EJOT Pro RAP07-GFs/01-240-160-WN-12,5
Unit
25
