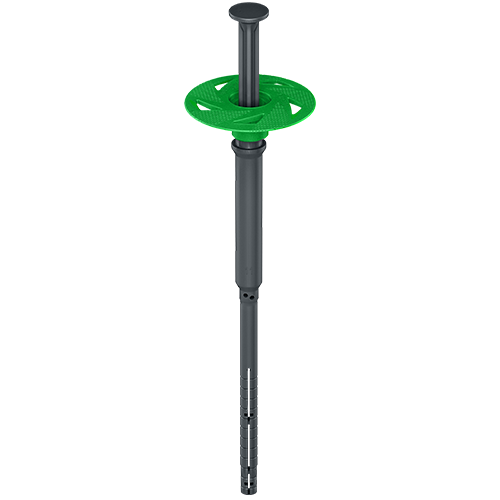

ejotherm® H2
Specification
-
Properties
- Approved for all building material categories (A, B, C, D, E)
- Dual expansion zones (25/45 mm) for an optimal hold, even in critical substrates.
- Axial moveable anchor washers provide optimal installation characteristics (washer compression)
- Reduction of thermal bridges by a variable under-head area and plastic-moulded steel nails (0.001 W/K)
- Slim anchor washer with high rigidity
- Pre-assembled for quick installation
- Can be mounted with additional washer
-
Technical specifications
- Anchor diameter: 8 mm
- Washer diameter: 60 mm
- Drill hole depth h1 ≥ 35 mm (55mm)
- Embedment depth hef ≥ 25 mm (45 mm)
- Point thermal transmittance λ 0.001 W/K
- Use categories ETA* A, B, C, D
Values in parentheses: anchoring in aerated concrete (use category E) *Specification according to ÖNorm B 6124 for concrete, solid brick and vertical brick
ETICS products are only available from system suppliers
Filter
Selected filters
| Orderidentifier | Article Number | Washer diameter mm | Anchor diameter mm | Length mm | Unit |
|---|---|---|---|---|---|
| ejotherm H2 095 | 8528095260 | 60.0 | 8.0 | 95.0 | 100 |
Specifications
|
|||||
| ejotherm H2 115 | 8528115260 | 60.0 | 8.0 | 115.0 | 100 |
Specifications
|
|||||
| ejotherm H2 135 | 8528135260 | 60.0 | 8.0 | 135.0 | 100 |
Specifications
|
|||||
| ejotherm H2 155 | 8528155260 | 60.0 | 8.0 | 155.0 | 100 |
Specifications
|
|||||
| ejotherm H2 175 | 8528175260 | 60.0 | 8.0 | 175.0 | 100 |
Specifications
|
|||||
| ejotherm H2 195 | 8528195260 | 60.0 | 8.0 | 195.0 | 100 |
Specifications
|
|||||
| ejotherm H2 215 | 8528215260 | 60.0 | 8.0 | 215.0 | 100 |
Specifications
|
|||||
| ejotherm H2 235 | 8528235260 | 60.0 | 8.0 | 235.0 | 100 |
Specifications
|
|||||
| ejotherm H2 255 | 8528255260 | 60.0 | 8.0 | 255.0 | 100 |
Specifications
|
|||||
| ejotherm H2 275 | 8528275260 | 60.0 | 8.0 | 275.0 | 100 |
Specifications
|
|||||
| ejotherm H2 295 | 8528295260 | 60.0 | 8.0 | 295.0 | 100 |
Specifications
|
