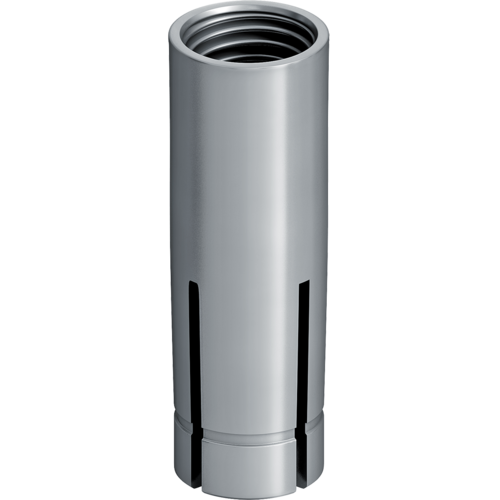

Drop-in anchor LA+

Specification

  • Applications

    • Suspension systems
    • Pipelines
    • Air ducts
    • Sprinkler systems
    • Cable racks
    • Machinery
    • Consoles
    • Ceiling girders
  • Properties

    • ETA-approved drop-in anchor, ideal for suspension systems
    • Drop-in anchor for pre-assembly with an assembly tool
    • The small required drill hole depth facilitates drilling and overhead mounting
    • Suitable for sprinkler systems
    • For dry indoor use
  • Technical specifications

    • Galvanized zinc-plated steel
    • I nternal thread for metric screws and rods
    • The suitable bolt length is 1-1.5 x nominal anchor length + component thickness

Filter

Selected filters

    Orderidentifier Article Number Thread Diameter mm Length mm Clamping thickness B ≥ mm Hole depth t ≤ mm Unit
    La+6 9650070050 8.0 25.0 11.0 27.0

    Specifications

    Thread Diameter
    8.0
    Length
    25.0
    Clamping thickness B ≥
    11.0
    Hole depth t ≤
    27.0
    Embedment
    25.0
    Orderidentifier
    La+6
    Unit
    LA+8 9650070052 10.0 30.0 13.0 32.0

    Specifications

    Thread Diameter
    10.0
    Length
    30.0
    Clamping thickness B ≥
    13.0
    Hole depth t ≤
    32.0
    Embedment
    30.0
    Orderidentifier
    LA+8
    Unit
    LA+10 9650070054 12.0 40.0 16.0 43.0

    Specifications

    Thread Diameter
    12.0
    Length
    40.0
    Clamping thickness B ≥
    16.0
    Hole depth t ≤
    43.0
    Embedment
    40.0
    Orderidentifier
    LA+10
    Unit
    LA+12 9650070056 15.0 50.0 23.0 54.0

    Specifications

    Thread Diameter
    15.0
    Length
    50.0
    Clamping thickness B ≥
    23.0
    Hole depth t ≤
    54.0
    Embedment
    50.0
    Orderidentifier
    LA+12
    Unit
