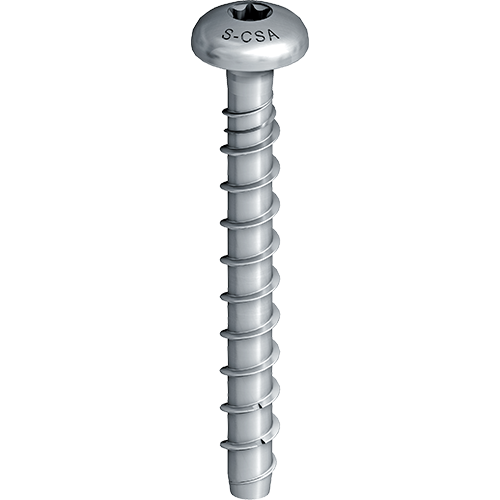

EJOT® Concrete screw JC2-FR 6

Specification

  • Applications

    • Facade scaffolds
    • Temporary fastening
    • Contact surfaces
    • Shelves
    • Cable racks
    • Hand rails
    • Battens
  • Properties

    • Galvanized zinc-plated steel
    • Pan head, hexagon socket
    • ETA-approved concrete screw for cracked and non-cracked concrete
    • Self-tapping approved screw anchor for
      push-trough installation
    • No expansion therefore small edge and center distances possible
    • Completely removable
    • For dry indoor use

    Base materials

    • Approved for cracked / non-cracked concrete.
    • Pre-stressed hollow core slab
    • Also suitable for
    • Bricks
    • Solid brick sandstone
  • Embedment substrates

    • Drive: TX30
Orderidentifier Article Number Embedment depth hef≥ mm Length mm Clamp thickness mm Drill hole depth mm Unit
Concrete Screw JC2-FR 6X60/5/20 9650071549 55.0 60.0 0.0 - 20.0 65.0 50

Specifications

Embedment depth hef
55.0
Length
60.0
Clamp thickness
0.0 - 20.0
Drill hole depth
65.0
Pilot Hole Ø
6.0
Orderidentifier
Concrete Screw JC2-FR 6X60/5/20
Unit
50
