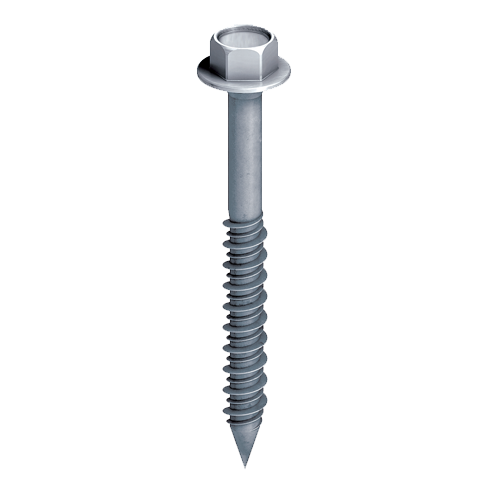

BS-R-6.3

BS R Concrete Screw

Specification

  • Applications

    • Steel sections, brackets or tracking to Concrete and solid brick

  • Properties

    • Case-hardened steel
    • Climadur coated – high-quality coating to improve the corrosion protection

  • Technical specifications

    • Drive: Hexagon AF8
    • Embedment depth ≥ 30mm
    • Hole depth: ≥ 45 mm
    • Nominal drill diameter: 5.0 mm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm mm Length mm Unit
    BS-R-6.3x35-V16 5663035513 6.3 16 35.0 100

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    35.0
    Inner Hole Ø
    5.0
    Pilot Hole Ø
    5.0
    Orderidentifier
    BS-R-6.3x35-V16
    Unit
    100
    BS-R-6.3x45-V16 5663045513 6.3 16 45.0 500

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    45.0
    Inner Hole Ø
    5.0
    Pilot Hole Ø
    5.0
    Orderidentifier
    BS-R-6.3x45-V16
    Unit
    500
    BS-R-6.3x100-V16 5663100513 6.3 16 100.0 250

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    100.0
    Inner Hole Ø
    5.0
    Pilot Hole Ø
    5.0
    Orderidentifier
    BS-R-6.3x100-V16
    Unit
    250
    BS-R-6.3x120-V16 5663120513 6.3 16 120.0 200

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    120.0
    Inner Hole Ø
    5.0
    Pilot Hole Ø
    5.0
    Orderidentifier
    BS-R-6.3x120-V16
    Unit
    200
    BS-R-6.3x140-V16 5663140513 6.3 16 140.0 200

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    140.0
    Inner Hole Ø
    5.0
    Pilot Hole Ø
    5.0
    Orderidentifier
    BS-R-6.3x140-V16
    Unit
    200
    BS-R-6.3x160-V16 5663160513 6.3 16 160.0 200

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    160.0
    Inner Hole Ø
    5.0
    Pilot Hole Ø
    5.0
    Orderidentifier
    BS-R-6.3x160-V16
    Unit
    200
    BS-R-6.3x180-V16 5663180513 6.3 16 180.0 200

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    180.0
    Inner Hole Ø
    5.0
    Pilot Hole Ø
    5.0
    Orderidentifier
    BS-R-6.3x180-V16
    Unit
    200
    BS-R-6.3x200-V16 5663200513 6.3 16 200.0 150

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    200.0
    Inner Hole Ø
    5.0
    Pilot Hole Ø
    5.0
    Orderidentifier
    BS-R-6.3x200-V16
    Unit
    150
    BS-R-6.3x220 5663220512 6.3 0 - none 200.0 100

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    0 - none
    Length
    200.0
    Inner Hole Ø
    5.0
    Pilot Hole Ø
    5.0
    Orderidentifier
    BS-R-6.3x220
    Unit
    100
    BS-R-6.3x220-V16 5663220513 6.3 16 220.0 150

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    220.0
    Inner Hole Ø
    5.0
    Pilot Hole Ø
    5.0
    Orderidentifier
    BS-R-6.3x220-V16
    Unit
    150
