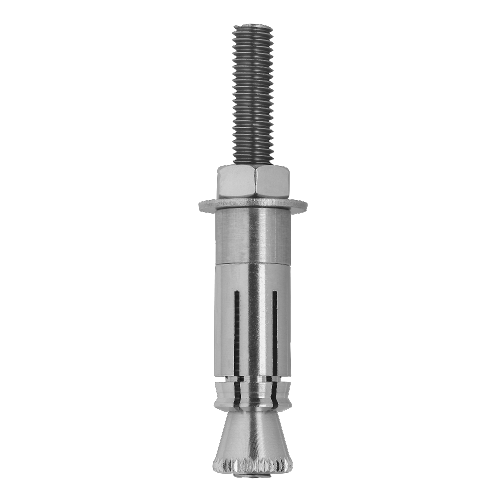

LIEBIG® lightning protection anchor SUPERPLUS BLS M8-14 A4

Superplus BLS M8-14

Specification

  • Applications

    • Retrofitted grounding systems


    Base materials

    Also suitable for

    • Concrete

  • Properties

    • Automatic self-undercutting, unique heavy-duty anchor for push through installation
    • Connected retrofitted grounding systems with reinforced bars in concrete structures
    • LIEBIG® SUPERPLUS lightning protection anchors have the same properties and provide the same output as the selfundercutting SUPERPLUS anchors
    • A4 for indoor and outdoor areas, as well as industrial applications

  • Technical specifications

    • A4 stainless Steel
Orderidentifier Article Number Material ø mm Length mm Hole depth

h1 ≥ mm

Unit
Liebig® lightning protection anchor BLS M8-14 A4 9650814085 Stainless Steel 14.0 85.0 40.0 25

Specifications

Material
Stainless Steel
ø
14.0
Length
85.0
Hole depth

h1 ≥

40.0
Embedment
40.0
Orderidentifier
Liebig® lightning protection anchor BLS M8-14 A4
Unit
25
