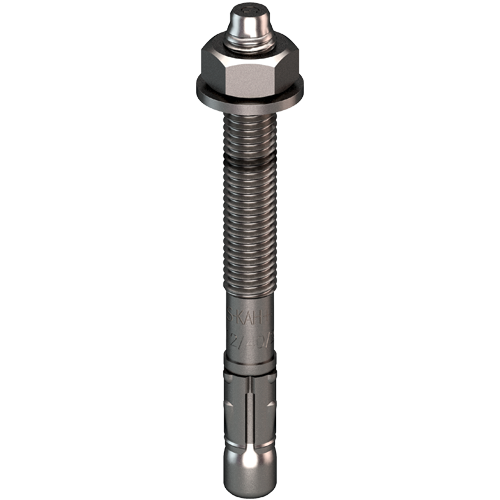

EJOT® BA-E Plus HCR

Specification

  • Applications

    • For embedment in cracked and non-cracked concrete ≥ C20/25
    • HCR for extremely corrosive conditions such as high chlorine concentrations (indoor swimming pools), road tunnels, and flue gas desulfurization plants
    • Dry indoor areas
    • Wet areas
    • Outdoors, including in industrial atmosphere and coastal environents
    • For embedment of medium heavy to heavy fixings such as pillars, metal structures and wooden structures
    • For pre- and push-through installations
    • Seismic approval category C2 M10-M16

    Note: Characteristic values apply to the compression strength of C20/25 concrete. Design load of an anchor for centric tension in cracked concrete.

  • Properties

    • Stainless HCR 1.4529 / 1.4565
    • Approval for concrete, Option 1
    • Fire restistance classes F30, F60, F90, F120
  • Technical specifications

    • Completely new design
    • M10 and M12 with 2 different anchorage depths
      M10: 40 mm and 60 mm
      M12: 50 mm and 70 mm
    • Colored setting depth marking on the thread
    • Anchor length letter code marked on the bolt head
    • Installation also in thinner concrete than today with M8 and M10
      M8:   80 mm vs. 100 mm
      M10: 100 mm vs. 120 mm
    • Installation torque achieved with 30 – 50% fewer revolutions

Filter

Selected filters

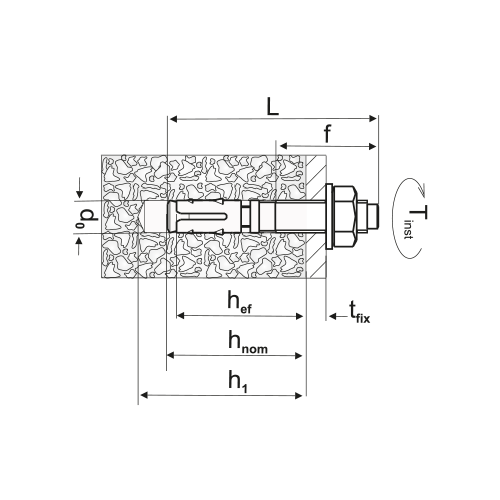

    Orderidentifier Article Number ø mm Length mm Clamping thickness

    tfix≤ mm

    Hole depth

    h1 ≥ mm

    Unit
    BA-E Plus HCR-8/23/10 9650006310 8.0 75.0 23.0 47.0 50

    Specifications

    ø
    8.0
    Length
    75.0
    Clamping thickness

    tfix

    23.0
    Hole depth

    h1

    47.0
    Embedment
    35.0
    Material
    A5 stainless steel – 1.4529
    Orderidentifier
    BA-E Plus HCR-8/23/10
    Unit
    50
    BA-E Plus HCR-10/10/- 9650006323 10.0 72.0 10.0 55.0 40

    Specifications

    ø
    10.0
    Length
    72.0
    Clamping thickness

    tfix

    10.0
    Hole depth

    h1

    55.0
    Embedment
    40.0
    Material
    A5 stainless steel – 1.4529
    Orderidentifier
    BA-E Plus HCR-10/10/-
    Unit
    40
    BA-E Plus HCR-10/50/30 9650006327 10.0 112.0 50.0 55.0 25

    Specifications

    ø
    10.0
    Length
    112.0
    Clamping thickness

    tfix

    50.0
    Hole depth

    h1

    55.0
    Embedment
    40.0
    Material
    A5 stainless steel – 1.4529
    Orderidentifier
    BA-E Plus HCR-10/50/30
    Unit
    25
