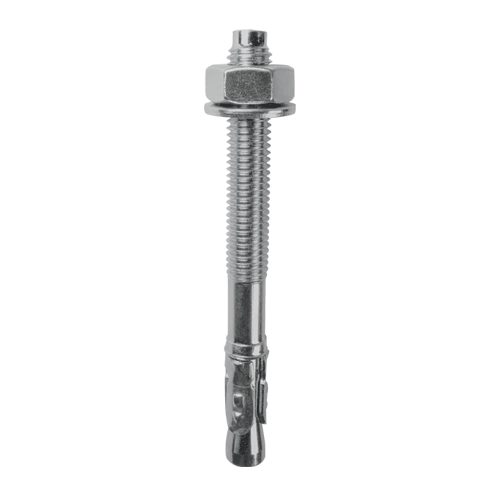

EJOTĀ® Through Bolts BA-C NC

Specification

  • Applications

    • For embedment in non-cracked concrete ≥ C20/25
    • Dry internal conditions
    • For anchoring medium heavy and heavy loads
    • For pre-set or through installation
  • Properties

    • Zinc electroplated steel
    • Approval for non-cracked concrete
  • Technical specifications

    • Torque-controlled expansion anchor
    • Cost efficient
    • Quick and easy to install
    • With European Technical Assessment

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Clamping thickness

    tfix≤ mm

    Hole depth

    h1 ≥ mm

    Unit
    BA-C 8x50 (5) NC* 9650007200 8.0 50.0 5.0 63.0 100

    Specifications

    ø
    8.0
    Length
    50.0
    Clamping thickness

    tfix

    5.0
    Hole depth

    h1

    63.0
    Effective anchorage depth

    hef

    43.0
    Orderidentifier
    BA-C 8x50 (5) NC*
    Unit
    100
    BA-C 8/10 NC 9650007202 8.0 75.0 10.0 63.0 75

    Specifications

    ø
    8.0
    Length
    75.0
    Clamping thickness

    tfix

    10.0
    Hole depth

    h1

    63.0
    Effective anchorage depth

    hef

    43.0
    Orderidentifier
    BA-C 8/10 NC
    Unit
    75
    BA-C 8/30 NC 9650007203 8.0 95.0 30.0 63.0 50

    Specifications

    ø
    8.0
    Length
    95.0
    Clamping thickness

    tfix

    30.0
    Hole depth

    h1

    63.0
    Effective anchorage depth

    hef

    43.0
    Orderidentifier
    BA-C 8/30 NC
    Unit
    50
    BA-C 8/50 NC 9650007205 8.0 115.0 50.0 63.0 50

    Specifications

    ø
    8.0
    Length
    115.0
    Clamping thickness

    tfix

    50.0
    Hole depth

    h1

    63.0
    Effective anchorage depth

    hef

    43.0
    Orderidentifier
    BA-C 8/50 NC
    Unit
    50
    BA-C 10/10 NC 9650007208 10.0 85.0 10.0 69.0

    Specifications

    ø
    10.0
    Length
    85.0
    Clamping thickness

    tfix

    10.0
    Hole depth

    h1

    69.0
    Effective anchorage depth

    hef

    50.0
    Orderidentifier
    BA-C 10/10 NC
    Unit
    BA-C 10/20 NC 9650007209 10.0 95.0 20.0 69.0 50

    Specifications

    ø
    10.0
    Length
    95.0
    Clamping thickness

    tfix

    20.0
    Hole depth

    h1

    69.0
    Effective anchorage depth

    hef

    50.0
    Orderidentifier
    BA-C 10/20 NC
    Unit
    50
    BA-C 10/30 NC 9650007210 10.0 105.0 30.0 69.0 40

    Specifications

    ø
    10.0
    Length
    105.0
    Clamping thickness

    tfix

    30.0
    Hole depth

    h1

    69.0
    Effective anchorage depth

    hef

    50.0
    Orderidentifier
    BA-C 10/30 NC
    Unit
    40
    BA-C 10/50 NC 9650007211 10.0 125.0 50.0 69.0 30

    Specifications

    ø
    10.0
    Length
    125.0
    Clamping thickness

    tfix

    50.0
    Hole depth

    h1

    69.0
    Effective anchorage depth

    hef

    50.0
    Orderidentifier
    BA-C 10/50 NC
    Unit
    30
    BA-C 12/10 NC 9650007212 12.0 110.0 10.0 92.0 30

    Specifications

    ø
    12.0
    Length
    110.0
    Clamping thickness

    tfix

    10.0
    Hole depth

    h1

    92.0
    Effective anchorage depth

    hef

    70.0
    Orderidentifier
    BA-C 12/10 NC
    Unit
    30
    BA-C 12/20 NC 9650007213 12.0 120.0 20.0 92.0 30

    Specifications

    ø
    12.0
    Length
    120.0
    Clamping thickness

    tfix

    20.0
    Hole depth

    h1

    92.0
    Effective anchorage depth

    hef

    70.0
    Orderidentifier
    BA-C 12/20 NC
    Unit
    30
