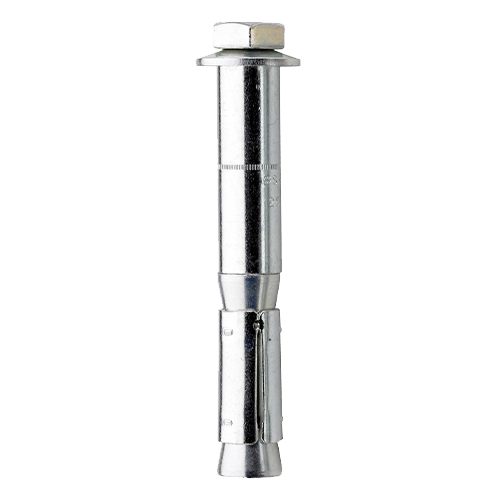

LIEBIG® Safety Bolt S

Specification

  • Applications

    • Steel structures
    • Machinery
    • Guard rails
    • Automatic hub systems
    • Railing
    • Base plates
    • Storage racks

    Base Materials

    Approved for

    • Cracked Concrete
    • Non-cracked Concrete

    also suitable for

    • Natural stone
  • Properties

    • Torque-controlled heavy-duty anchor with double cone for
      push-through installation
    • Suitable for heavy loads thanks to the optimum frictional resistance.
      Cylindrical, wide expansion zone of the sleeve along
      the whole length
    • With dome-shaped washers for visual assembly inspection
    • For dry indoor and temporary outdoor use
  • Technical specifications

    • Hexagon screw
    • Galvanized zinc-plated steel
    • Size range M6; M8; M12 and M16

Filter

Selected filters

    Orderidentifier Article Number Thread Diameter mm Length mm Clamping thickness B ≥ mm Hole depth t ≤ mm Unit
    S M16-25/100/5 9655100105 25.0 145.0 5.0 125.0

    Specifications

    Thread Diameter
    25.0
    Length
    145.0
    Clamping thickness B ≥
    5.0
    Hole depth t ≤
    125.0
    Drill diameter
    Clamp thickness
    Material
    Carbon Steel
    Orderidentifier
    S M16-25/100/5
    Unit
    show more
    S M16-25/100/15 9655100115 25.0 155.0 15.0 125.0

    Specifications

    Thread Diameter
    25.0
    Length
    155.0
    Clamping thickness B ≥
    15.0
    Hole depth t ≤
    125.0
    Drill diameter
    25.0
    Clamp thickness
    15.0
    Material
    Carbon Steel
    Orderidentifier
    S M16-25/100/15
    Unit
    show more
    S M16-25/100/40 9655100140 25.0 180.0 40.0 125.0

    Specifications

    Thread Diameter
    25.0
    Length
    180.0
    Clamping thickness B ≥
    40.0
    Hole depth t ≤
    125.0
    Drill diameter
    25.0
    Clamp thickness
    40.0
    Material
    Carbon Steel
    Orderidentifier
    S M16-25/100/40
    Unit
    show more
    S M12-20/80/5 9650080105 20.0 113.0 5.0 100.0

    Specifications

    Thread Diameter
    20.0
    Length
    113.0
    Clamping thickness B ≥
    5.0
    Hole depth t ≤
    100.0
    Drill diameter
    Clamp thickness
    Material
    Carbon Steel
    Orderidentifier
    S M12-20/80/5
    Unit
    show more
    S M12-20/80/15 9650080115 20.0 123.0 15.0 100.0

    Specifications

    Thread Diameter
    20.0
    Length
    123.0
    Clamping thickness B ≥
    15.0
    Hole depth t ≤
    100.0
    Drill diameter
    20.0
    Clamp thickness
    15.0
    Material
    Carbon Steel
    Orderidentifier
    S M12-20/80/15
    Unit
    show more
    S M12-20/40/80 9650080140 20.0 148.0 40.0 100.0

    Specifications

    Thread Diameter
    20.0
    Length
    148.0
    Clamping thickness B ≥
    40.0
    Hole depth t ≤
    100.0
    Drill diameter
    20.0
    Clamp thickness
    40.0
    Material
    Carbon Steel
    Orderidentifier
    S M12-20/40/80
    Unit
    show more
    S M10-15/70/5 9655070105 15.0 95.0 5.0 85.0

    Specifications

    Thread Diameter
    15.0
    Length
    95.0
    Clamping thickness B ≥
    5.0
    Hole depth t ≤
    85.0
    Drill diameter
    Clamp thickness
    Material
    Carbon Steel
    Orderidentifier
    S M10-15/70/5
    Unit
    show more
    S M10-15/70/15 9655070115 15.0 105.0 15.0 85.0

    Specifications

    Thread Diameter
    15.0
    Length
    105.0
    Clamping thickness B ≥
    15.0
    Hole depth t ≤
    85.0
    Drill diameter
    15.0
    Clamp thickness
    15.0
    Material
    Carbon Steel
    Orderidentifier
    S M10-15/70/15
    Unit
    show more
    S M10-15/70/40 9655070140 15.0 130.0 40.0 85.0

    Specifications

    Thread Diameter
    15.0
    Length
    130.0
    Clamping thickness B ≥
    40.0
    Hole depth t ≤
    85.0
    Drill diameter
    15.0
    Clamp thickness
    40.0
    Material
    Carbon Steel
    Orderidentifier
    S M10-15/70/40
    Unit
    show more
    S M8-12/55/5 9652055105 12.0 80.0 5.0 70.0

    Specifications

    Thread Diameter
    12.0
    Length
    80.0
    Clamping thickness B ≥
    5.0
    Hole depth t ≤
    70.0
    Drill diameter
    Clamp thickness
    Material
    Carbon Steel
    Orderidentifier
    S M8-12/55/5
    Unit
    show more
