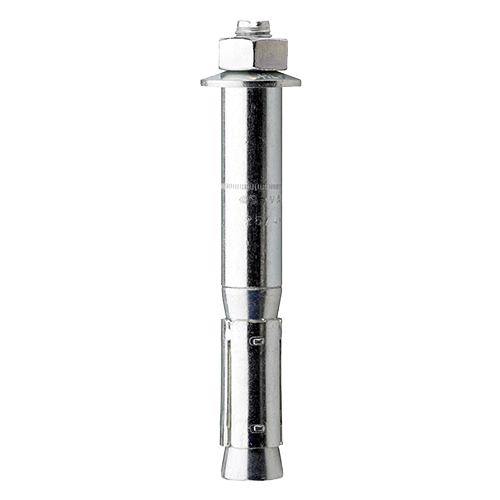

  6. LIEBIG® Safety Bolt B

LIEBIG® Safety Bolt B

Sicherheitsd?bel B

Specification

  • Applications

    • Fixing down of Steel Baseplates.
    • Fixing down of Columns
    • Fixing down of Structural Steel Beams

  • Properties

    • Carbon steel zinc plated.

  • Technical specifications

    • Double cone expansion anchor
    • ETA approved for cracked and non cracked concrete.
    • Hex Nut
    • Size Range M6-M16.
    • Carbon steel zinc plated.

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Clamping thickness

    tfix≤ mm

    		Hole depth

    h1 ≥ mm

    		Unit
    LIEBIG® B M6-10/45/5 9650045005 10.0 70.0 5.0 60.0 50

    Specifications

    ø
    10.0
    Length
    70.0
    Clamping thickness

    tfix≤

    5.0
    Hole depth

    h1 ≥

    60.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG® B M6-10/45/5
    Unit
    50
    LIEBIG® B M6-10/45/15 9650045015 10.0 80.0 15.0 60.0 50

    Specifications

    ø
    10.0
    Length
    80.0
    Clamping thickness

    tfix≤

    15.0
    Hole depth

    h1 ≥

    60.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG® B M6-10/45/15
    Unit
    50
    LIEBIG® B M6-10/45/40 9650045040 10.0 105.0 40.0 60.0 50

    Specifications

    ø
    10.0
    Length
    105.0
    Clamping thickness

    tfix≤

    40.0
    Hole depth

    h1 ≥

    60.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG® B M6-10/45/40
    Unit
    50
    LIEBIG B M8-12/55/5 9652055005 12.0 85.0 5.0 70.0 25

    Specifications

    ø
    12.0
    Length
    85.0
    Clamping thickness

    tfix≤

    5.0
    Hole depth

    h1 ≥

    70.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG B M8-12/55/5
    Unit
    25
    LIEBIG B M8-12/55/15 9652055015 12.0 95.0 15.0 70.0 25

    Specifications

    ø
    12.0
    Length
    95.0
    Clamping thickness

    tfix≤

    15.0
    Hole depth

    h1 ≥

    70.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG B M8-12/55/15
    Unit
    25
    LIEBIG B M8-12/55/40 9652055040 12.0 120.0 40.0 70.0 25

    Specifications

    ø
    12.0
    Length
    120.0
    Clamping thickness

    tfix≤

    40.0
    Hole depth

    h1 ≥

    70.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG B M8-12/55/40
    Unit
    25
    LIEBIG B M8-12/55/65 9652055065 12.0 145.0 65.0 75.0 25

    Specifications

    ø
    12.0
    Length
    145.0
    Clamping thickness

    tfix≤

    65.0
    Hole depth

    h1 ≥

    75.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG B M8-12/55/65
    Unit
    25
    LIEBIG B M8-12/55/100 9652055100 12.0 180.0 100.0 70.0 25

    Specifications

    ø
    12.0
    Length
    180.0
    Clamping thickness

    tfix≤

    100.0
    Hole depth

    h1 ≥

    70.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG B M8-12/55/100
    Unit
    25
    LIEBIG B M10-15/70/5 9655070005 15.0 100.0 5.0 85.0 25

    Specifications

    ø
    15.0
    Length
    100.0
    Clamping thickness

    tfix≤

    5.0
    Hole depth

    h1 ≥

    85.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG B M10-15/70/5
    Unit
    25
    LIEBIG B M10-15/70/15 9655070015 15.0 110.0 15.0 85.0 25

    Specifications

    ø
    15.0
    Length
    110.0
    Clamping thickness

    tfix≤

    15.0
    Hole depth

    h1 ≥

    85.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG B M10-15/70/15
    Unit
    25
