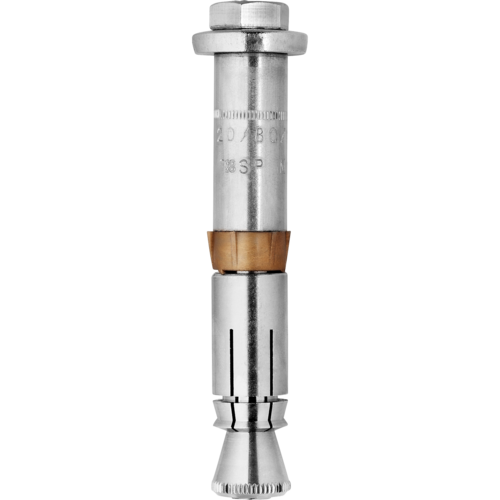

LIEBIG® SUPERPLUS SLS A4

Specification

Applications
- Power plants
- Guard rails
- Machinery
- Base plates
- For dynamic and seismic loads
- Small edge and center distances
Properties
- Self-undercutting anchor with hexagon screw and washer
- A4-80 stainless steel
- Automatic self-undercutting, unique heavy-duty anchor for push through installation
- Simplest, quickest and safest solution on the market
- Cost-effective: No special drills, undercutting or setting tools required
- Minimal expansion forces allow for small center and edge distances
- For indoor and outdoor areas, as well as industrial applica¬tions
Technical specifications

Approved for
- Cracked concrete
- Non-cracked concrete

Orderidentifier	Article Number	ø mm	Length mm	Clamping thickness t_fix≤ mm	Hole depth h₁ ≥ mm		Unit
LIEBIG SUPERPLUS SLS M8-14/40/15 A4	9653144015	14.0	70.0	15.0	60.0	40.0	25
Specifications ø 14.0 Length 70.0 Clamping thickness t_fix≤ 15.0 Hole depth h₁ ≥ 60.0 Embedment 40.0 Orderidentifier LIEBIG SUPERPLUS SLS M8-14/40/15 A4 Unit 25
LIEBIG SUPERPLUS SLS M8-14/80/25 A4	9653148025	14.0	120.0	25.0	100.0	80.0	25
Specifications ø 14.0 Length 120.0 Clamping thickness t_fix≤ 25.0 Hole depth h₁ ≥ 100.0 Embedment 80.0 Orderidentifier LIEBIG SUPERPLUS SLS M8-14/80/25 A4 Unit 25
LIEBIG SUPERPLUS SLS M12-20/80/15 A4	9653208015	20.0	120.0	15.0	105.0	80.0	10
Specifications ø 20.0 Length 120.0 Clamping thickness t_fix≤ 15.0 Hole depth h₁ ≥ 105.0 Embedment 80.0 Orderidentifier LIEBIG SUPERPLUS SLS M12-20/80/15 A4 Unit 10
