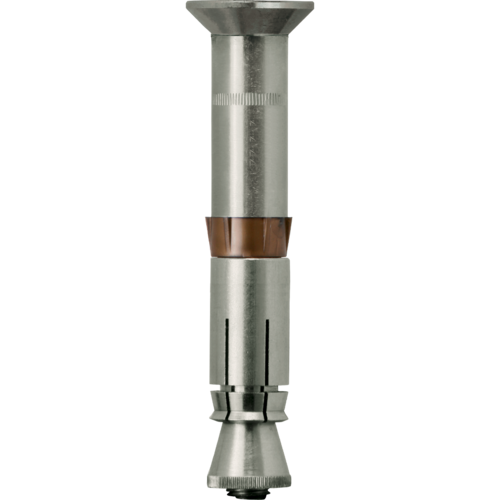

LIEBIG® SUPERPLUS SKLS A4

Specification

  • Applications

    • Power plants
    • Guard rails
    • Machinery
    • Base plates
    • For dynamic and seismic loads
    • Small edge and center distances
  • Properties

    • Self-undercutting anchor with threaded bolt, countersunk screw and countersunk insert
    • A4-80 stainless steel
    • Automatic self-undercutting, unique heavy-duty anchor for push through installation
    • Simplest, quickest and safest solution on the market
    • Cost-effective: No special drills, undercutting or setting tools required
    • Minimal expansion forces allow for small center and edge distances
    • For indoor and outdoor areas, as well as industrial applica¬tions
  • Base materials

    Approved for

    • Cracked concrete
    • Non-cracked concrete

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Clamping thickness

    tfix≤ mm

    Thread diameter mm Unit
    LIEBIG SUPERPLUS SKLS M8-14/40/15 A4 9654144015 14.0 70.0 15.0 14.0 25

    Specifications

    ø
    14.0
    Length
    70.0
    Clamping thickness

    tfix

    15.0
    Thread diameter
    14.0
    Hole depth

    h1

    60.0
    Embedment
    40.0
    Clamp thickness
    15.0
    Material
    Stainless Steel
    Orderidentifier
    LIEBIG SUPERPLUS SKLS M8-14/40/15 A4
    Unit
    25
    LIEBIG SUPERPLUS SKLS M8-14/80/25 A4 9654148025 14.0 120.0 25.0 14.0 25

    Specifications

    ø
    14.0
    Length
    120.0
    Clamping thickness

    tfix

    25.0
    Thread diameter
    14.0
    Hole depth

    h1

    100.0
    Embedment
    80.0
    Clamp thickness
    25.0
    Material
    Stainless Steel
    Orderidentifier
    LIEBIG SUPERPLUS SKLS M8-14/80/25 A4
    Unit
    25
    LIEBIG SUPERPLUS SKLS M12-20/80/15 A4 9654208015 20.0 120.0 15.0 20.0 10

    Specifications

    ø
    20.0
    Length
    120.0
    Clamping thickness

    tfix

    15.0
    Thread diameter
    20.0
    Hole depth

    h1

    105.0
    Embedment
    80.0
    Clamp thickness
    15.0
    Material
    Stainless Steel
    Orderidentifier
    LIEBIG SUPERPLUS SKLS M12-20/80/15 A4
    Unit
    10
