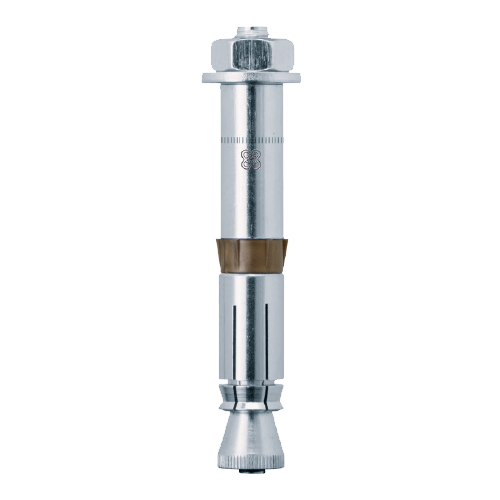

LIEBIG® SUPERPLUS BLS

Specification

  • Applications

    • Power plants
    • Guard rails
    • Machinery
    • Base plates
    • For dynamic and seismic loads
    • Small edge and center distances
  • Properties

    • Self-undercutting anchor with treaded bolt, nut and washer
    • Automatic self-cutting, unique heavy-duty anchor for push through installation
    • Simplest, quickest and safest solution on the market
    • Cost-efective: No special drills, undercutting or setting tools required
    • Minimal expansion forces allow for small edge distances
    • For dry indoor use
  • Technical specifications

    • Galvanized zinc-plated steel

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Clamping thickness

    tfix≤ mm

    Thread diameter mm Unit
    BLS M8-14/80/25 9654080025 14.0 130.0 25.0 8.0 25

    Specifications

    ø
    14.0
    Length
    130.0
    Clamping thickness

    tfix

    25.0
    Thread diameter
    8.0
    Hole depth

    h1

    100.0
    Embedment
    80.0
    Clamp thickness
    25.0
    Material
    Carbon Steel
    Orderidentifier
    BLS M8-14/80/25
    Unit
    25
    BLS M12-20/80/15 9650080015 20.0 130.0 15.0 12.0 10

    Specifications

    ø
    20.0
    Length
    130.0
    Clamping thickness

    tfix

    15.0
    Thread diameter
    12.0
    Hole depth

    h1

    105.0
    Embedment
    80.0
    Clamp thickness
    15.0
    Material
    Carbon Steel
    Orderidentifier
    BLS M12-20/80/15
    Unit
    10
    BLS M12-20/80/30 9650080030 20.0 145.0 30.0 12.0 10

    Specifications

    ø
    20.0
    Length
    145.0
    Clamping thickness

    tfix

    30.0
    Thread diameter
    12.0
    Hole depth

    h1

    105.0
    Embedment
    80.0
    Clamp thickness
    30.0
    Material
    Carbon Steel
    Orderidentifier
    BLS M12-20/80/30
    Unit
    10
    BLS M12-20/150/30 9650150030 20.0 215.0 30.0 12.0 10

    Specifications

    ø
    20.0
    Length
    215.0
    Clamping thickness

    tfix

    30.0
    Thread diameter
    12.0
    Hole depth

    h1

    175.0
    Embedment
    150.0
    Clamp thickness
    30.0
    Material
    Carbon Steel
    Orderidentifier
    BLS M12-20/150/30
    Unit
    10
    BLS M16-25/150/30 9655150030 25.0 220.0 30.0 16.0 5

    Specifications

    ø
    25.0
    Length
    220.0
    Clamping thickness

    tfix

    30.0
    Thread diameter
    16.0
    Hole depth

    h1

    185.0
    Embedment
    150.0
    Clamp thickness
    30.0
    Material
    Carbon Steel
    Orderidentifier
    BLS M16-25/150/30
    Unit
    5
    BLS M16-25/200/40 9655200040 25.0 280.0 40.0 16.0 5

    Specifications

    ø
    25.0
    Length
    280.0
    Clamping thickness

    tfix

    40.0
    Thread diameter
    16.0
    Hole depth

    h1

    235.0
    Embedment
    200.0
    Clamp thickness
    40.0
    Material
    Carbon Steel
    Orderidentifier
    BLS M16-25/200/40
    Unit
    5
    BLS M16-25/200/60 9655200060 25.0 300.0 60.0 16.0 5

    Specifications

    ø
    25.0
    Length
    300.0
    Clamping thickness

    tfix

    60.0
    Thread diameter
    16.0
    Hole depth

    h1

    235.0
    Embedment
    200.0
    Clamp thickness
    60.0
    Material
    Carbon Steel
    Orderidentifier
    BLS M16-25/200/60
    Unit
    5
