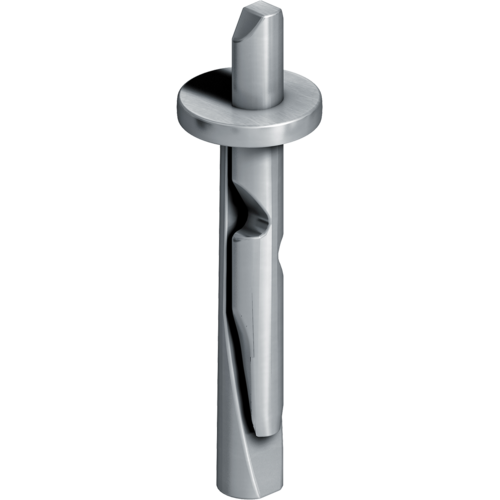

Ceiling nail

Specification

  • Applications

    • For use as a multiple fastener of non-supporting systems in concrete
    • Approved for concrete strengths from C20/25 to C50/60
  • Properties

    • Multiple fastening
    • High load bearing capacity in cracked and non-cracked concrete
    • Small drill holes
    • Fast and reliable installation
  • Technical specifications

    Characteristic values without fire exposure

    • Drill-hole diameter d0: 6 mm
    • Drill hole depth ≥ h1:   40 mm
    • embedment depth ≥ hef: 32 mm
    • Min. component thickness hmin: 80 mm
    • Min. edge distance cmin: 150 mm
    • Min. centre distance smin: 200 mm
    • Max. attached part thickness tfix: 5mm
    • Height of the attached part ≤ tfix: 5 mm
Orderidentifier Article Number Unit
T-DN 6-35 Ceiling nail 9700050035 100

Specifications

Orderidentifier
T-DN 6-35 Ceiling nail
Unit
100
