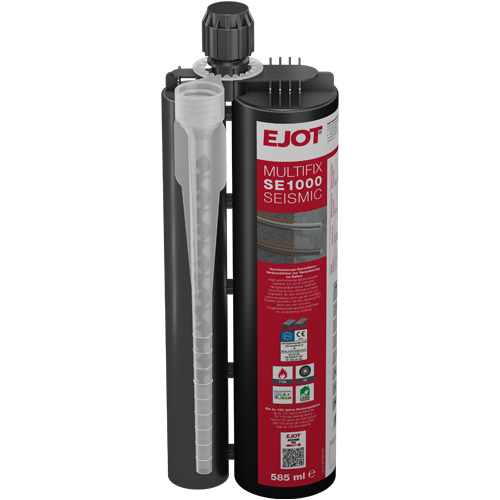

Multifix SE1000 Seismic

multifix-SE-Pos-2-500x500

Specification

  • Applications

    • Designed for heavy-duty applications in concrete, including the installation of steel structures such as columns, beams, brackets, railings, gratings, sanitary equipment, stadium seating, pipe supports and cable management systems
    • Also ideal for securing facades, awnings and storage racks
    • Suitable for post-installed rebar applications in renovation, extension and retrofit projects. Application range

    Substrates:

    • Cracked and non-cracked concrete

    Fastening elements:

    • Threaded rods (galvanized and stainless steel)
    • Post-Installed rebars
    • Internal threaded anchor rods

  • Properties

    • Premium pure epoxy 3:1 injection resin
    • For heavy-duty applications
    • Seismic action and fire exposure assessment
    • Overhead installation
    • Water-filled drill holes
    • Fastening without expansion pressure, therefore small edge and center distances possible
    • Very high chemical resistance
    • Low odor development
    • High flexural and compressive strength
    • The cartridge can be used again until the end of its shelf life by replacing the static mixer or by closing it again with the original cap
    • ETA Approvals: ETA-20/1280, ETA-22/0365, ETA-23/1010
    • 100 years working life assessment

    Notice
    Please observe the corresponding approvals during planning and processing.



1 mixing nozzle includet in the scope of delievery

Orderidentifier Article Number Content ml Amount mixing nozzle Unit
Mortar cartridge Multifix SE1000 Seismic 585 ml 9571001000 585.0 1 1

Specifications

Content
585.0
Amount mixing nozzle
1
Orderidentifier
Mortar cartridge Multifix SE1000 Seismic 585 ml
Unit
1

Multifix Calculator

Calculate the mortar cartridges required for your project with this calculation tool. It will help you to reduce waste and make your installation more cost-effective.

  • Select thread diameter from the list on the far left.
  • Select the number of holes to fill by entering them in the text box above the illustration or alternatively use the plus and minus buttons.
  • Select the drilling depth using the plus and minus buttons in the illustration.
  • Done! The number of mortar cartridges required is now displayed.
