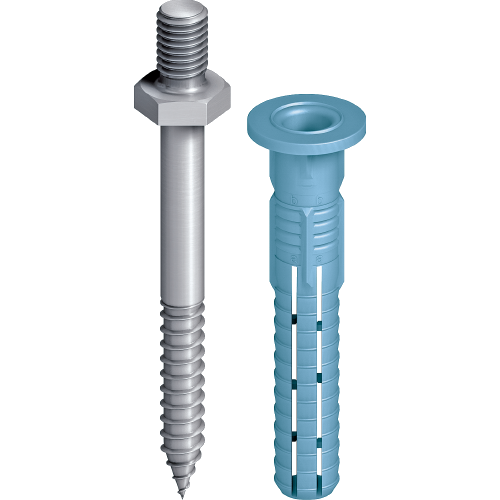

EJOT® facade anchor SDF-KB-10V/M8

Specification

  • Applications

    • Suitable for installation of support profiles with steel rods in rainscreen
    • Embedment of suspended ceilings
    • Fastening of ring bolts

    Notice

    Please observe the European Technical Approval ETA-10/0305 in the planning and processing of products. Further information about parameters and loads can be found in the approval under the tab "Downloads".

  • Properties

    • With M8 threaded connection
    • Anchor with minimal embedment depth in concrete
    • Very short expansion part for extremely fast installation
    • Optimal expanding part due to radial expansion
    • Very high bending moment
    • Product identification through different sleeve colours
    • Double safety lock against torsion for secure installation
  • Technical specifications

    Characteristic values

    • Diameter: 10 mm
    • Hole depth in concrete h1,1: ≥ 70 mm
    • Effective embedment depth in concrete hnom,1: ≥ 40 mm
    • Hole depth in masonry h1,2: ≥ 70 mm
    • Effective embedment depth in masonry hnom,2: ≥ 50 mm
    • Drill-hole diameter d0: 10 mm
    • Drive: AF 13
    • Length M8 threaded connection: 13 mm

    Characteristic loads

    • Tensile load NRk,p in concrete C12/15
      • Temperature range 30 °C / 50 °C: 4.50 kN
      • Temperature range 50 °C / 80 °C: 4.00 kN
    • FRK brick Mz 20-1.8, NF: 2.50 kN
    • FRK solid sand-lime brick KS 36, NF: 4.00 kN
    • FRK solid sand-lime brick KS 20, 8 DF: 4.50 kN
    • Transverse load VRk,s in concrete C12/15 bei hnom,1 = 40 mm
      • Anchor with A4 stainless steel screw: 9.12 kN
    • Transverse load VRk,s at hnom,2 = 50 mm
      • Anchor with A4 stainless steel screw: 12.94 kN
    • Bending moment MRk,s at hnom,1 = 40 mm
      • Anchor with A4 stainless steel screw: 16.09 kN
    • Side load MRk,s at hnom,2 = 50 mm
      • Anchor with A4 stainless steel screw: 26.62 Nm
*Anchor with steel screws with zinc-plated Cr(VI)-free coating (-V) upon request.
Orderidentifier Article Number Material Length mm Unit
SDF-KB-10Vx60/M8x13-E 8581060813 Stainless Steel 60.0 100

Specifications

Material
Stainless Steel
Length
60.0
Orderidentifier
SDF-KB-10Vx60/M8x13-E
Unit
100
