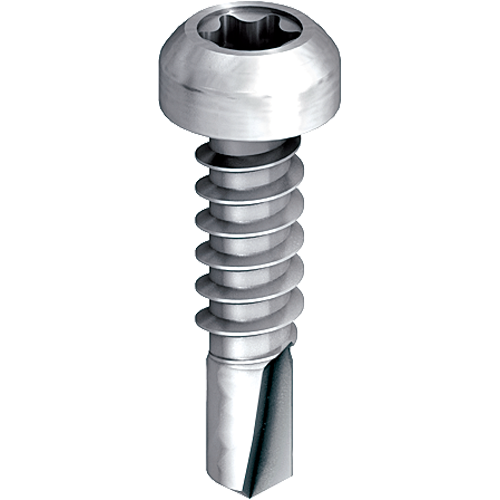

EJOT® stainless steel self-drilling screw JT4-ZT-4-4.8

JT4-ZT-4-4,8

Specification

  • Applications

    • Fastening aluminium profiles to aluminium substructure ≤3 mm

  • Properties

    • A2 stainless steel

  • Technical specifications

    • Drilling capacity tI + tII: 1.0 + 3.0 mm
    • Drive: hexalobular TORX® T25

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Fastener material Unit
    JT4-ZT-4-4,8x19 7381118300 4.8 0 - none 19.0 Stainless Steel 1000

    Specifications

    ø
    4.8
    Ø Sealing Washer mm
    0 - none
    Length
    19.0
    Fastener material
    Stainless Steel
    Clamp thickness
    1.5 - 9.0
    Orderidentifier
    JT4-ZT-4-4,8x19
    Unit
    1000
    JT4-ZT-4-4,8x25 7381129300 4.8 0 - none 25.0 Stainless Steel 1000

    Specifications

    ø
    4.8
    Ø Sealing Washer mm
    0 - none
    Length
    25.0
    Fastener material
    Stainless Steel
    Clamp thickness
    1.5 - 15.0
    Orderidentifier
    JT4-ZT-4-4,8x25
    Unit
    1000
