JT3-3-6.3

JT3-3-6_3
JT3-3-6_3_nw_2016

Specification

  • Applications

    • Standing seam halter brackets or Helping hand brackets

  • Properties

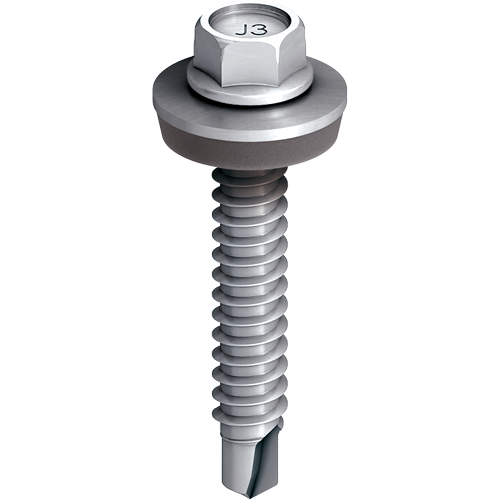

    • A2 Austenitic Stainless Steel fastener with Carbon steel drill point

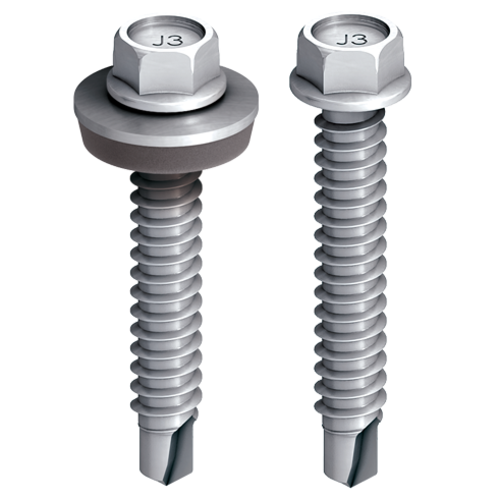

    • Available unwashered

  • Technical specifications

    • Drive: hexagon A/F8
    • Steel sections from 1.2 to 3.0mm in thickness

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Fastener material Unit
    JT3-3-6,3x38 7380511301 6.3 0 - none 38.0 Stainless Steel

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    0 - none
    Length
    38.0
    Fastener material
    Stainless Steel
    Clamp thickness
    1.2 - 22.0
    Orderidentifier
    JT3-3-6,3x38
    Unit
    JT3-3-6,3x38 E16 3599611331 6.3 16 38.0 Stainless Steel

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    38.0
    Fastener material
    Stainless Steel
    Clamp thickness
    1.2 - 20.0
    Orderidentifier
    JT3-3-6,3x38 E16
    Unit
    JT3-3-6,3x50 7380582301 6.3 0 - none 50.0 Stainless Steel

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    0 - none
    Length
    50.0
    Fastener material
    Stainless Steel
    Clamp thickness
    1.2 - 34.0
    Orderidentifier
    JT3-3-6,3x50
    Unit
