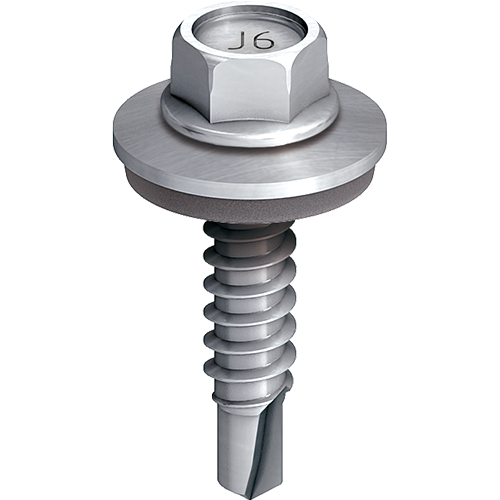

EJOT® self-drilling screw JT6-2H-Plus-5.5

Specification

  • Applications

    • Side lap stitching of profiled steel and aluminium sheets
    • Fastening profiled steel and aluminium sheets to cassette system walls
  • Properties

    • A4 stainless steel with hardened drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • With free spin zone under the screw head for side lap stitching
  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 1.5 + 2.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1800 rpm
Orderidentifier Article Number Ø Sealing Washer mm Length mm Clamp thickness mm Fastener material Unit
JT6 -2H- PLUS 5.5x25 E16 3592281991 16 25.0 2.0 - 7.0 Stainless Steel 500

Specifications

Ø Sealing Washer mm
16
Length
25.0
Clamp thickness
2.0 - 7.0
Fastener material
Stainless Steel
Orderidentifier
JT6 -2H- PLUS 5.5x25 E16
Unit
500
